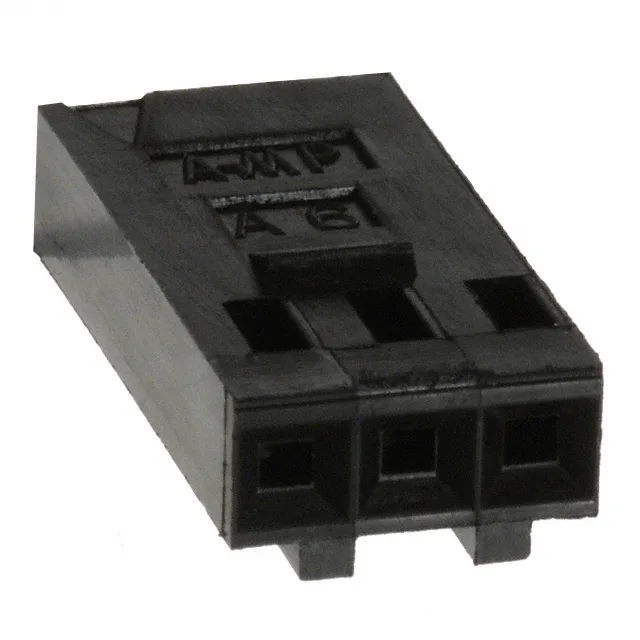

TE Connectivity AMPMODU Mod IV receptacle housing, 102241-1, 3 positions, 0.100" (2.54mm) pitch, 1 row, free hanging, locking ramp, crimp termination, black nylon, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
This is the shell only — the crimp terminals that go inside are ordered separately, which is the normal practice for field-terminated harnesses where you choose the wire gauge and plating grade.
The 102241-1 accepts female socket crimp contacts (sold separately).
The base product number is 102241, which covers the whole family of single-row AMPMODU Mod IV receptacle housings at this pitch.
The 102241-1 accepts female socket crimp contacts designed for the AMPMODU Mod IV series. Contacts are ordered separately — the housing listing explicitly notes 'Contacts Not Included' because wire gauge and plating choice depend on the application.
That 2.54mm centerline is the industry standard for mating with 0.025" square pin headers.
