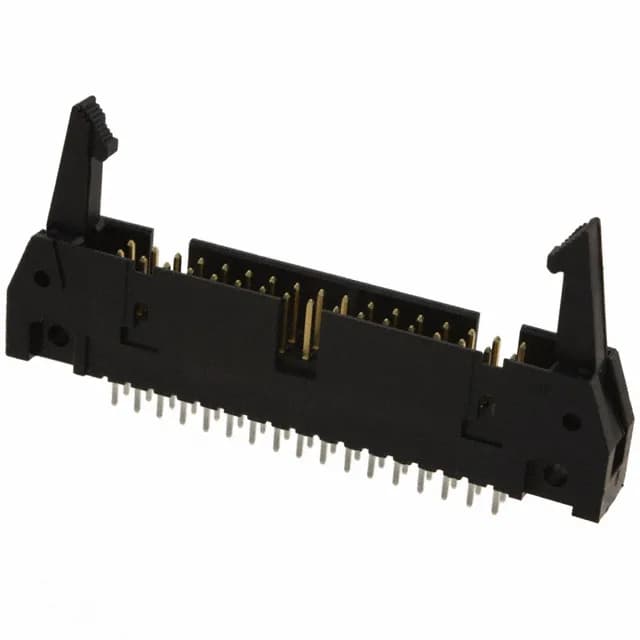

TE Connectivity AMP-Latch header, order code 102321-8, 34 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, 250 VAC, gold or gold-palladium mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 102321-8 is the 34-circuit member of TE's AMP-Latch shrouded header line, a dual-row through-hole board-to-wire connector. It mates with the matching AMP-Latch IDC receptacle, latching via long eject hooks.
The 34-position 102321-8 sits within the AMP-Latch series at a standard 0.100" pitch.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors per the base product number 102321.
