TE Connectivity AMP Connectors 102322-1 — Pin Headers, Sockets & Housings

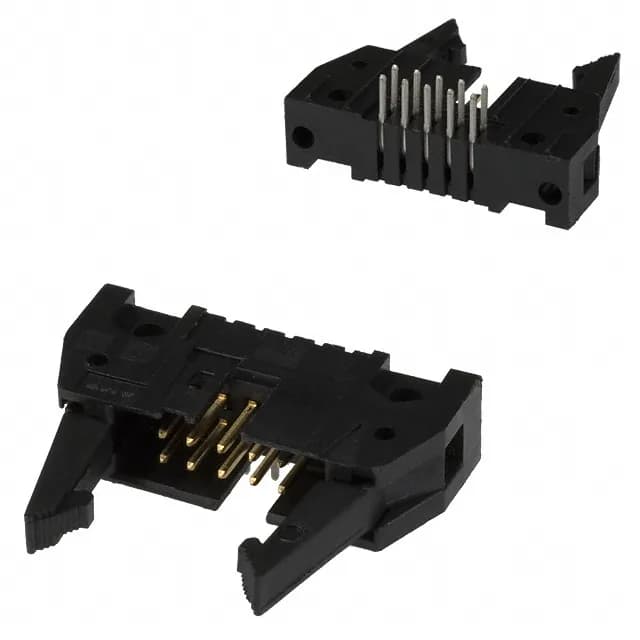

102322-1 TE Connectivity AMP-Latch Header, 10 Pos

MPN102322-1
Active

TE Connectivity AMP-Latch series, 102322-1, shrouded header, 10 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, 30 µinch gold or gold-palladium mating finish, 1 A per contact, UL94 V-0.

$2.9304Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 102322-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102322-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

102322-1 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.155\" (3.94mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Wire Header for AMP-Latch IDC Termination

The 102322-1: Long latch/eject hooks on the shroud lock with the mating receptacle and provide a lever for unmating under dense harness routing.

Mating Finish and Cycle Life for Field-Service Duty

Gold-palladium adds a fretting-corrosion margin in mildly corrosive environments.

Production Status and Sourcing Posture

Packaged in tray — not tape-and-reel, so plan for manual or tube-fed placement if the line is set up for reel-fed pick-and-place.

Mating Half and Keying Compatibility

The header mates with AMP-Latch IDC socket connectors (strain-relief or daisy-chain types) that accept 0.100" pitch ribbon cable. The latch/eject hooks are the long version — they engage the mating receptacle's locking ears and require clearance on the cable side for the lever action during unmating.

Frequently asked questions

What is the recommended mating connector for 102322-1?

The header mates with AMP-Latch IDC socket connectors designed for 0.100" pitch ribbon cable. The shrouded 4-wall housing with keying slot ensures correct orientation and prevents mis-mating.

Is 102322-1 the same as 102322-2?

The base product number is 102322; the dash number indicates a specific variant. 102322-1 carries a right-angle orientation with long latch/eject hooks. Check the product drawing for the exact dash-number differences — they may vary in contact length or plating option.

Where can I find the datasheet for 102322-1?

The datasheet and product drawing for 102322-1 are available from TE Connectivity's documentation portal under the base product number 102322. The spec table on this page lists the key ratings.
