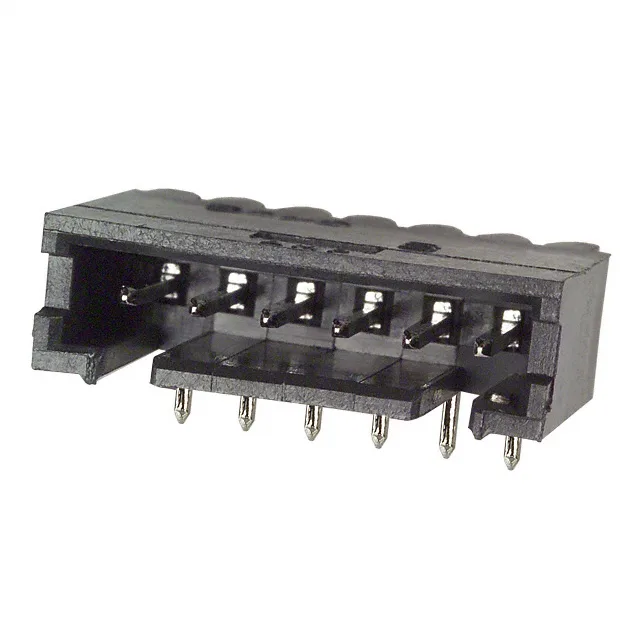

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 102523-4, 6 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead mating contacts, through-hole right-angle, solder termination.
TE 102523-4 Header, 6 Pos, 0.100" Pitch, Obsolete
MPN102523-4
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 102523-4, 6 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead mating contacts, through-hole right-angle, solder termination.
$0.9400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
How is the 102523-4 sourced for volume purchases?
As an Obsolete part, the 102523-4 is sourced through independent surplus channels. Availability and pricing are confirmed per RFQ against the target quantity.
