7-Pin Shrouded Header — 2.54 mm Pitch, Right-Angle, Obsolete

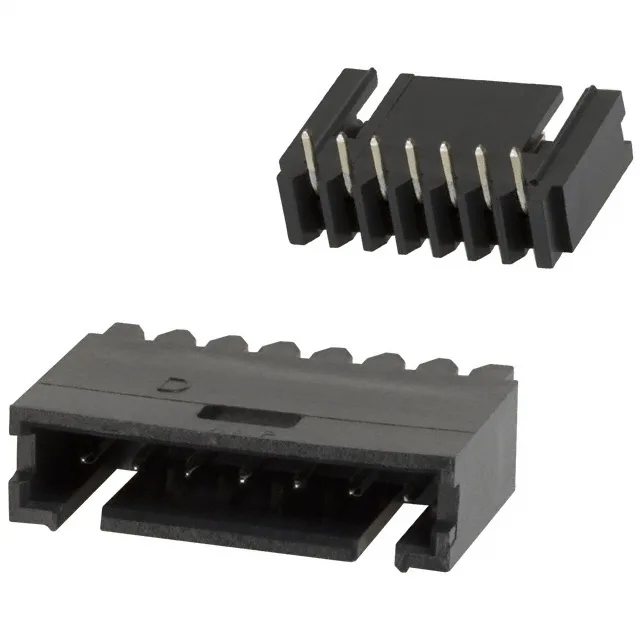

The 102523-5 is a 7-position, single-row, shrouded header from the AMPMODU Mod II series. The push-pull fastening and 4-wall shrouding protect the pins during mating and reduce misalignment risk.
Obsolete — Sourcing Through Independent Channels
This part carries an Obsolete lifecycle status from the manufacturer. Available through independent surplus distribution — quantities are lot-specific and confirmed at RFQ. No stock-holding claim; sourced per BOM quantity.
The mating contacts carry a tin-lead finish at 100.0 µinch (2.54 µm) thickness — typical for moderate-cycle applications. In a field-service environment where the connector is cycled a few times per year, the plating thickness supports reliable contact over decades. The post finish is also tin-lead at the same thickness, compatible with standard wave-solder profiles.
Housing and Environmental Ratings
Contact material is phosphor bronze, a standard spring alloy that resists stress relaxation under repeated insertion.
