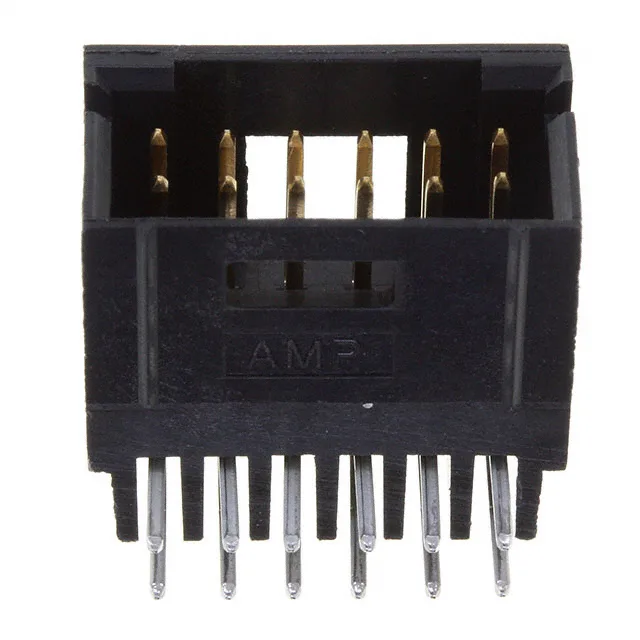

TE Connectivity AMPMODU Mod II shrouded header, 12 positions, 0.100" (2.54 mm) pitch, dual-row, through hole right angle, gold mating finish, rated 3 A per contact, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 102617-4: The 0.135" (3.43 mm) solder tail length suits standard 1.6 mm PCB thickness.
The phosphor bronze contact material maintains spring-force retention across that range without stress relaxation.
The 102617-4 is an active TE Connectivity AMP Connectors part. Submit an RFQ for your target volume.
The contact post finish is tin-lead, which is not RoHS-compliant. If your application requires a lead-free finish, check the 102617 series base number for a RoHS variant — the post plating is the only non-compliant element.
