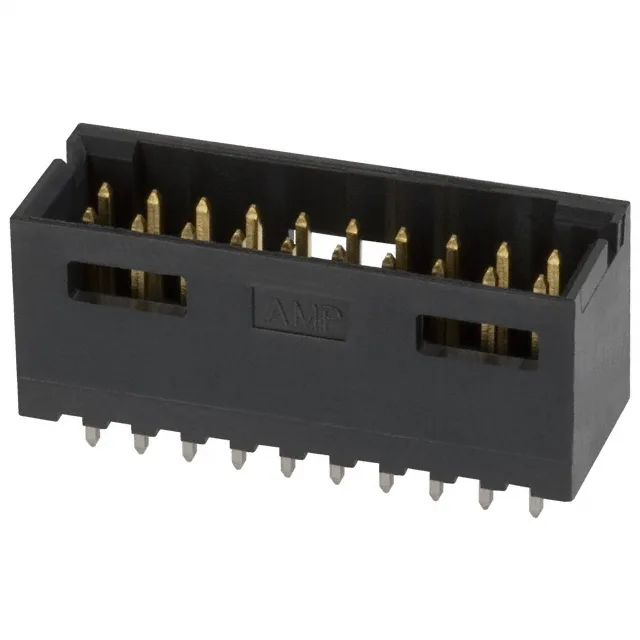

TE Connectivity AMPMODU Mod II shrouded header, 20 positions, 0.100" (2.54mm) pitch, dual-row, through-hole, gold mating finish, detent lock, 3A rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Rated 3A per contact, this header suits signal-level circuits rather than power distribution. The tin-lead post finish (100.0µin) is compatible with standard wave-solder processes, though the RoHS non-compliant status means it cannot be used in RoHS-required assemblies without an exemption.
RoHS non-compliant — verify your assembly's RoHS exemption policy before using this part in new designs.
No — it is listed as RoHS non-compliant. The post finish is tin-lead. Verify your assembly's RoHS exemption before use.
Confirm the receptacle's keying and latch compatibility with the detent lock.
