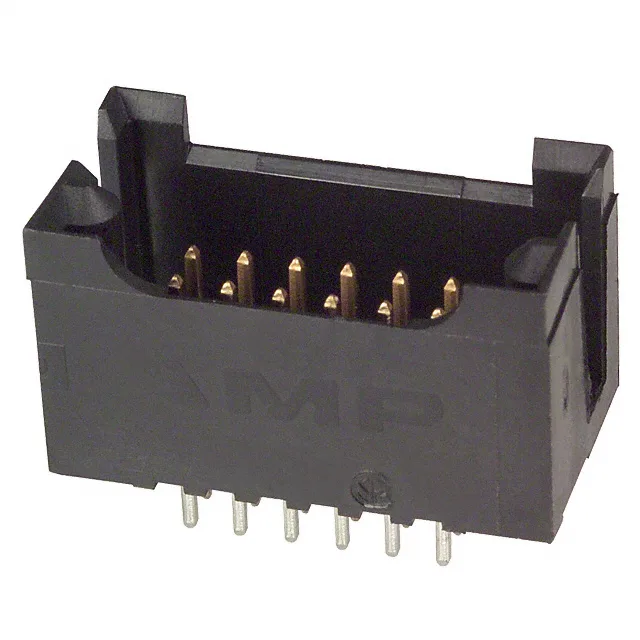

TE Connectivity AMPMODU Mod II, 102692-1, Board to Board or Cable, Header, Male Pin, 12 Positions, 2.54mm Pitch, 2 Rows, Through Hole, Solder, Shrouded - 4 Wall, Push-Pull, Gold Mating Contact, 2A, 250VAC, -65°C to 105°C, UL94 V-0, Black Thermoplastic, Tube
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
102692-1 is a through-hole, vertical header from the AMPMODU Mod II series, with 12 positions arranged in two rows on a 0.100-inch (2.54 mm) pitch. The shrouded four-wall housing protects the square male pins during handling and mis-mate events, and the push-pull fastening keeps the mated connection secure without a locking latch — suitable for environments where vibration is moderate and field-mate cycles are infrequent.
102692-1 is a male pin header. It mates with a female socket receptacle from the same AMPMODU Mod II series — look for a 12-position, 2-row, 0.100-inch pitch receptacle with a shroud that accepts the square pins. The exact mating part number depends on your termination preference (crimp, IDC, or solder cup).
No. If your application requires RoHS compliance, consider a lead-free alternative in the same series.
