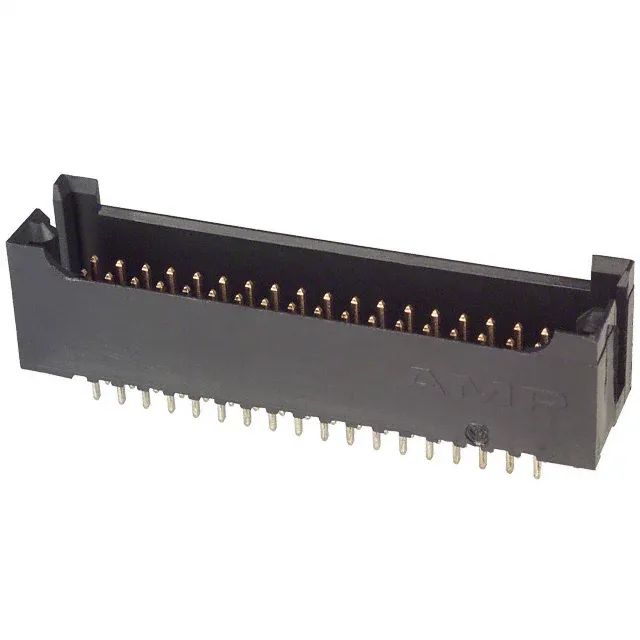

The 102692-3 is the 36-circuit member of TE's AMPMODU Mod II header line, a shrouded 4-wall design that mates with matching socket housings for board-to-board or cable connections. It carries gold-plated mating contacts rated 2A per circuit at 250VAC and mounts through-hole with solder termination.
TE 102692-3 Header, 36 Pos, 0.100" Pitch, Active
MPN102692-3
Active
TE Connectivity AMPMODU Mod II header, order code 102692-3, 36 positions, dual row, 0.100" (2.54mm) pitch, 2A, 250VAC, gold-plated mating contacts, through-hole, solder termination.
$9.2700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 102692-3 and how do I get a price?
The 102692-3 is available to order. Request a quote for current pricing and lead time based on your BOM quantity.
What is 102692-3's listed style?
The 102692-3 is listed as a Board to Board or Cable style header.
