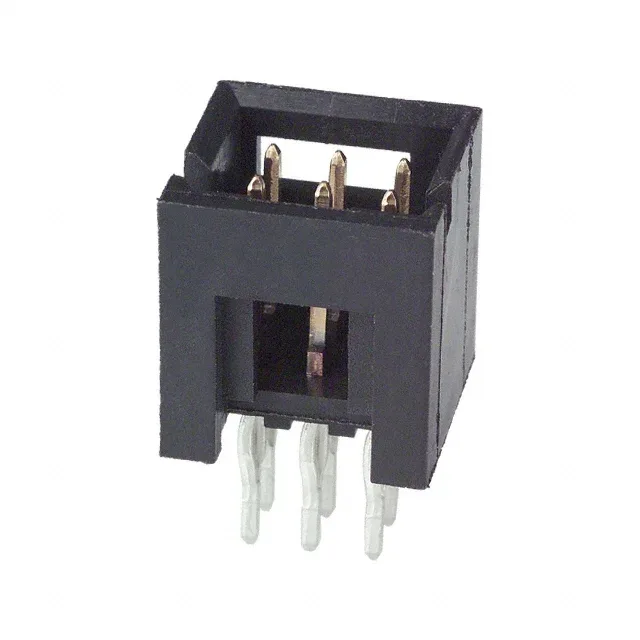

TE Connectivity AMPMODU Mod II, Header, 6 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Press-Fit/Solder, Gold Mating Finish, 3A, -55°C ~ 105°C, UL94 V-0, Black, Tray
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 102699-2: Termination is listed as press-fit and solder, meaning the through-hole posts (0.250" post length) can be press-fit into a plated hole for solderless assembly or soldered conventionally. Note that the tin-lead finish makes this part RoHS non-compliant.
The insulation height of 0.440" (11.18mm) gives clearance for mating receptacles.
No, the 102699-2 is RoHS non-compliant due to the tin-lead finish on the post. For lead-free requirements, a different part number from the AMPMODU Mod II series with a tin or gold post finish should be selected.
