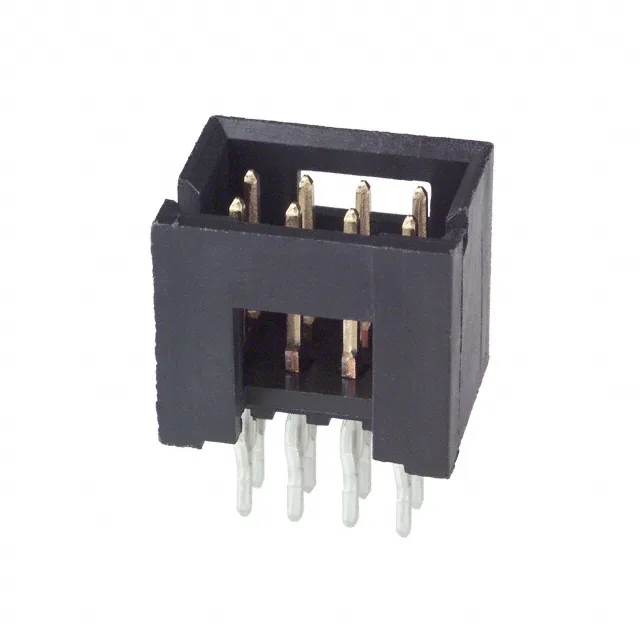

TE Connectivity AMP Connectors AMPMODU Mod II header, 102699-3, 8 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through hole, press-fit/solder termination, gold mating finish, 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The through-hole posts measure 0.250" (6.35mm) long, suitable for standard PCB thicknesses. Compared to the right-angle sibling 1-1871673-2 (4 positions, 2.50mm pitch, tin mating finish), this 8-position vertical header offers twice the circuit count at the more common 2.54mm pitch with gold mating finish — a better fit for signal integrity where higher mating cycle life is needed.
The pitch is 0.100" (2.54mm) on both rows and mating surfaces. Mounting is through hole with press-fit or solder termination.
Yes, it has a shrouded 4-wall design that protects the pins and guides the mating receptacle. A detent lock provides audible and tactile mating confirmation.
