TE Connectivity AMP Connectors 102699-6 — Pin Headers

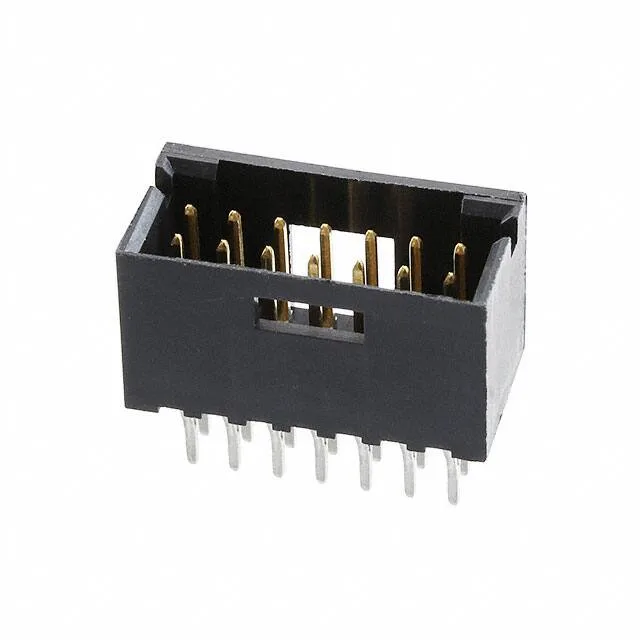

102699-6 TE Connectivity AMPMODU Mod II Header, 14 Pos

MPN102699-6
Active

TE Connectivity AMP Connectors AMPMODU Mod II, 102699-6, Header, 14 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Press-Fit, Solder, Gold Mating, Detent Lock, Tray

$10.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 102699-6 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

102699-6 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

102699-6 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.250\" (6.35mm)
Overall contact length0.660\" (16.76mm)
Contact finish - matingGold
Contact length - mating0.320\" (8.13mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Termination and Mating: Press-Fit and Solder, Through Hole

The 102699-6: Termination is press-fit, solder — the compliant pin presses into the plated through-hole without solder, then the solder tail is wave-soldered for mechanical and electrical integrity. The 0.250" (6.35 mm) post length accommodates standard PCB thicknesses up to ~0.125" with room for the solder fillet. The 0.320" (8.13 mm) mating pin length ensures full contact wipe inside the receptacle socket before the detent lock engages.

Frequently asked questions

Is 102699-6 RoHS compliant?

No. The lifecycle record lists 102699-6 as RoHS non-compliant. Check your assembly's exemption status before ordering.

What is the mating half for 102699-6?

This header mates with AMPMODU Mod II receptacles of the same pitch (0.100") and circuit count (14 positions). The detent lock requires a receptacle with a matching locking ramp.
