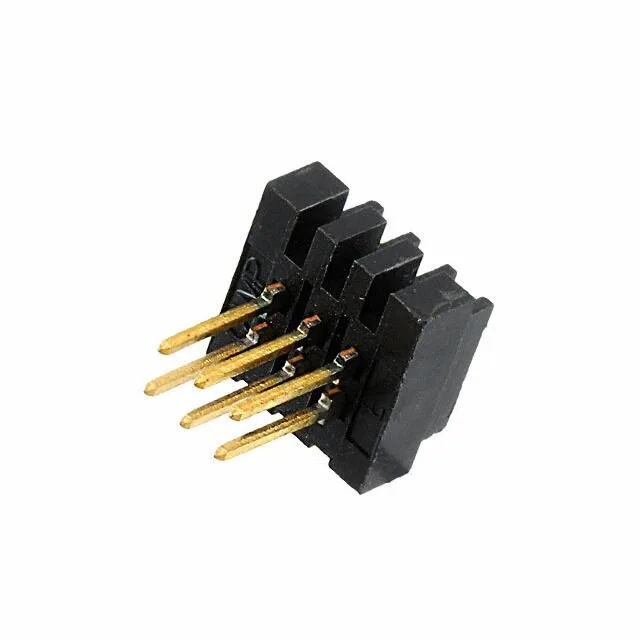

TE Connectivity AMP Connectors AMPMODU MT header, order code 102792-6, 6 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE AMPMODU MT 102792-6 Header, 6 Pos, 2.54mm, Gold
MPN102792-6
Active
TE Connectivity AMP Connectors AMPMODU MT header, order code 102792-6, 6 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$4.4409Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.434\" (11.02mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
