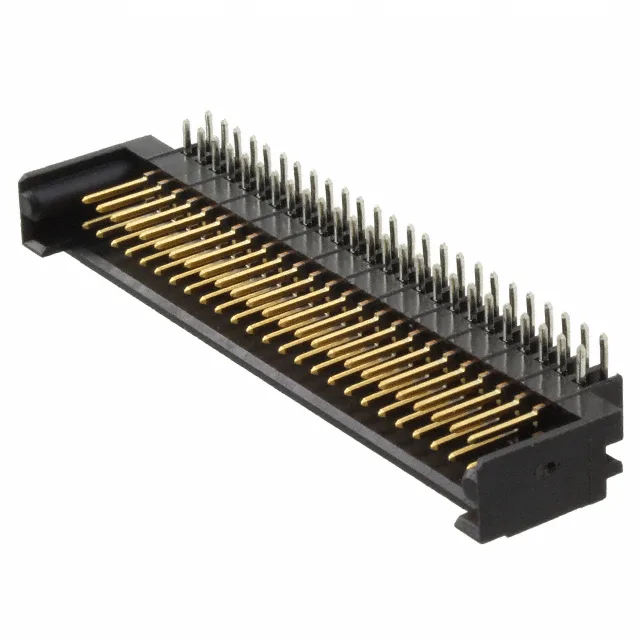

TE Connectivity AMPMODU Mod II header, order code 102802-4, 50 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, 250 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 102802-4 Header, 50 Pos, 2.54mm, Gold, Active
MPN102802-4
Active
TE Connectivity AMPMODU Mod II header, order code 102802-4, 50 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, 250 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
$11.7500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.319\" (8.10mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Who supplies 102802-4 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors is the manufacturer.
What is the closest pin-compatible alternative to 102802-4 in this Pin Headers, Sockets & Housings family?
The 102802-4 is a unique position count in the AMPMODU Mod II series.
What is 102802-4's listed style (Board to Board or Cable) on this Pin Headers, Sockets & Housings line?
The listed style is Board to Board or Cable.
What compliance documentation does TE Connectivity AMP Connectors provide for 102802-4 (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
