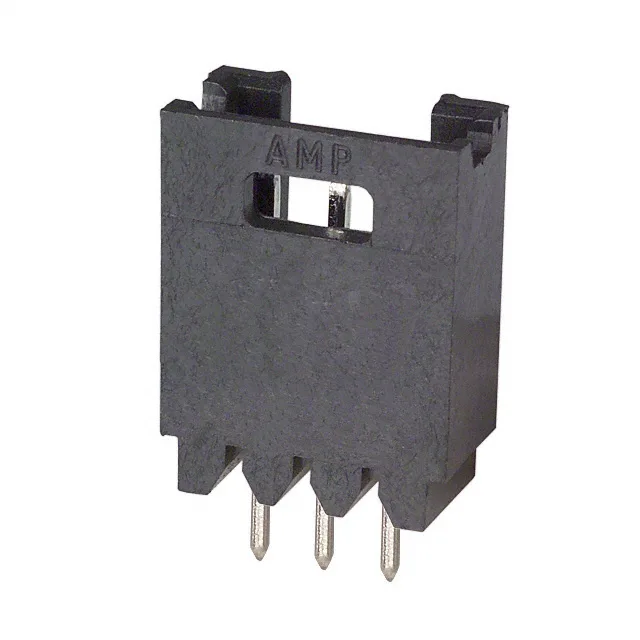

TE Connectivity AMPMODU Mod II header, order code 103080-1, 3 positions, single row, 0.100" (2.54 mm) pitch, 3 A, tin-lead mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 103080-1 is the 3-position member of TE's AMPMODU Mod II shrouded header line, a Board to Board or Cable style connector with a push-pull fastening system.
The 103080-1 is listed as Obsolete by TE Connectivity AMP Connectors.
The 103080-1 is marked Obsolete. Availability is limited to existing distributor or surplus stock; quantities are confirmed at RFQ. No direct replacement is offered from TE under the AMPMODU Mod II series.
RoHS and REACH compliance status should be verified against the specific date code batch, as the tin-lead contact finish may affect RoHS exemption eligibility.
