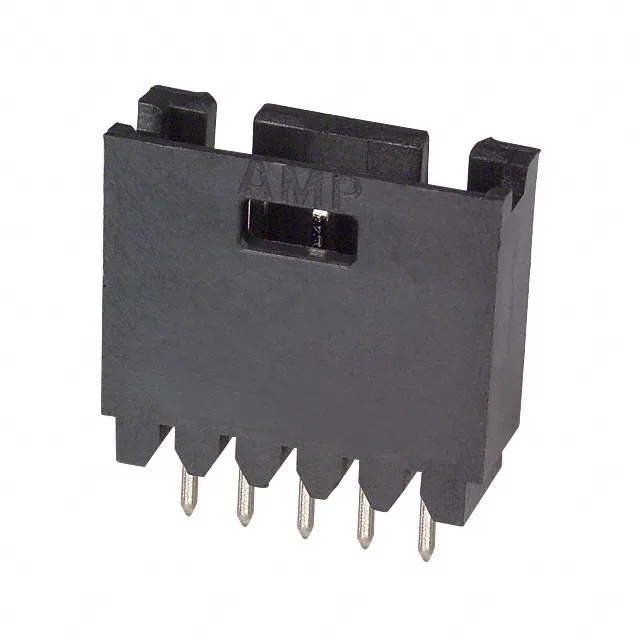

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 103080-3, 5 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 103080-3 is the 5-position member of TE's AMPMODU Mod II shrouded header line, single-row, through-hole with push-pull fastening.
Available through independent surplus channels; quantities confirmed at RFQ. No pin-compatible direct replacement from the original manufacturer.
The 103080-3 is available through independent surplus channels. Submit an RFQ for current availability and pricing.
Contact TE Connectivity AMP Connectors for RoHS/REACH status on this obsolete part number.
