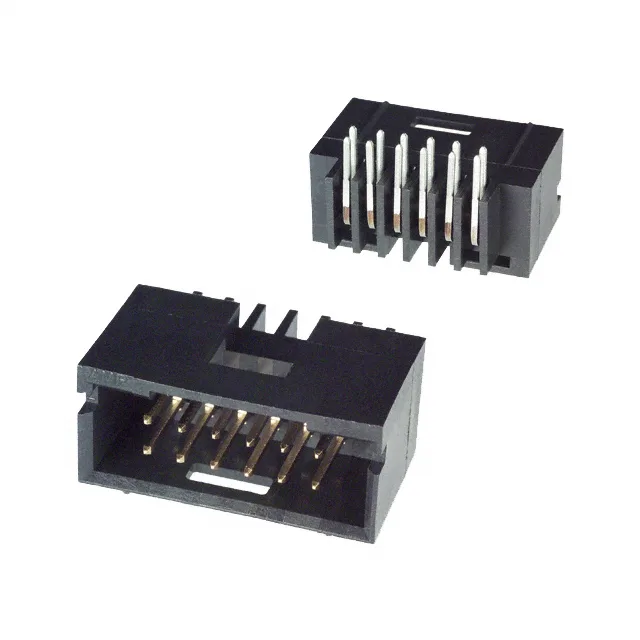

TE Connectivity AMPMODU Mod II header, 103167-3, 12 positions, 2-row, 0.100" (2.54mm) pitch, shrouded 4-wall, through hole right angle, gold mating finish, 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103167-3: Rated at 3A per contact, the header handles signal-level currents in industrial or commercial assemblies.
Termination is solder to through-hole pads.
Supplied by TE Connectivity AMP Connectors.
The closest functional alternative is 1-1871673-2, also a right-angle shrouded header with detent lock. The 103167-3 provides higher mating cycle durability and more circuits.
No, the 103167-3 is RoHS non-compliant because the contact post finish is tin-lead. Verify your BOM's compliance requirements before ordering.
Confirm the mating half part number against your assembly drawing.
