Right-angle 20-position header for board-edge routing

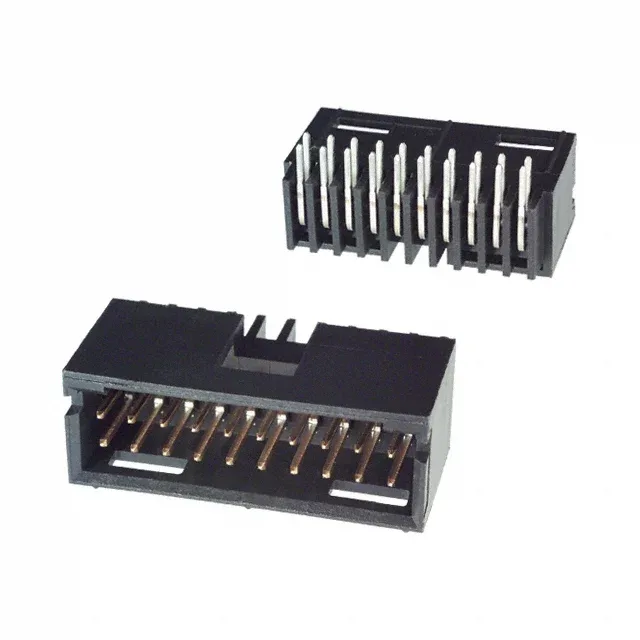

The 103167-7 is a 20-position, dual-row header from the AMPMODU Mod II series, on a 0.100-inch (2.54mm) pitch. It mounts through-hole, right-angle, so the pins run parallel to the board surface — useful when the mating cable or board needs to exit along the PCB edge rather than straight up.
Detent lock and gold mating interface
The post tails are tin-lead for standard soldering.
Rated current and temperature range
Each contact is rated 3 A. In a 20-position header, the total current through the connector is limited by the sum of the active circuits and the derating at elevated ambient — the housing material (UL94 V-0 thermoplastic,) handles the thermal rise.
