TE Connectivity AMP Connectors 103168-1 — Pin Headers

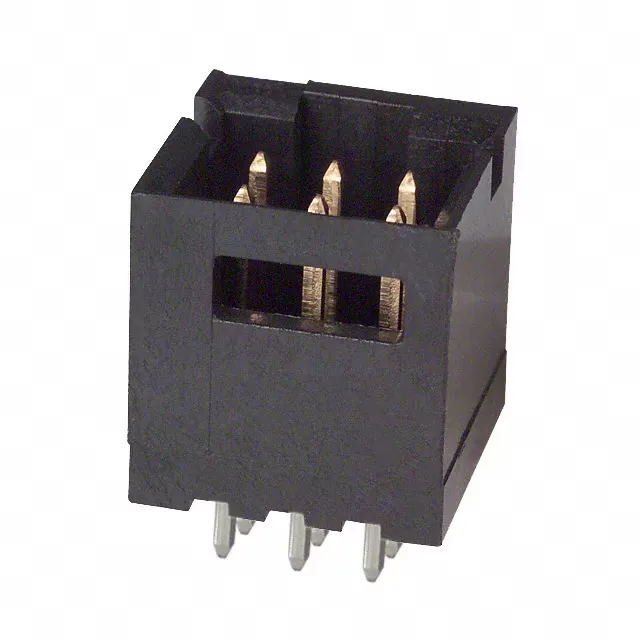

103168-1 TE Connectivity AMPMODU Mod II Header, 6 Pos

MPN103168-1
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 6 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Gold Mating Finish, 3 A, UL94 V-0

$2.4100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103168-1 datasheet (PDF)
RoHSNot applicable
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103168-1 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103168-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Through-Hole Solder Termination, UL94 V-0 Housing

The 103168-1: Through-hole solder tails, 0.125" (3.18 mm) long, suit standard wave-solder processes.

Peer Comparison: 1318699-3 vs 103168-1

The 1318699-3 is a 12-position, 4-row header with a 0.165" (4.20 mm) pitch and a latch lock, rated 5 A per contact. The 103168-1 carries 6 positions in 2 rows at 0.100" pitch, rated 3 A. The 1318699-3 suits higher-current, higher-density wire-to-board applications; the 103168-1 fits standard 0.100" pitch board layouts where 6 circuits are sufficient.

Frequently asked questions

What is the datasheet for 103168-1?

Engineers need to confirm electrical and mechanical specifications before inclusion in a design.

Where can I buy 103168-1?

Sourcing buyers need to locate authorized distributors to purchase the part.

What is the price of 103168-1?

Procurement teams need cost data for budgeting and negotiation.

What is the pinout of 103168-1?

Design engineers must verify pin orientation for PCB layout.

What is the replacement or equivalent for 103168-1?

Buyers and techs need alternatives if the part is unavailable or obsolete.

Is 103168-1 RoHS compliant?

Compliance with RoHS is mandatory for many electronics applications.
