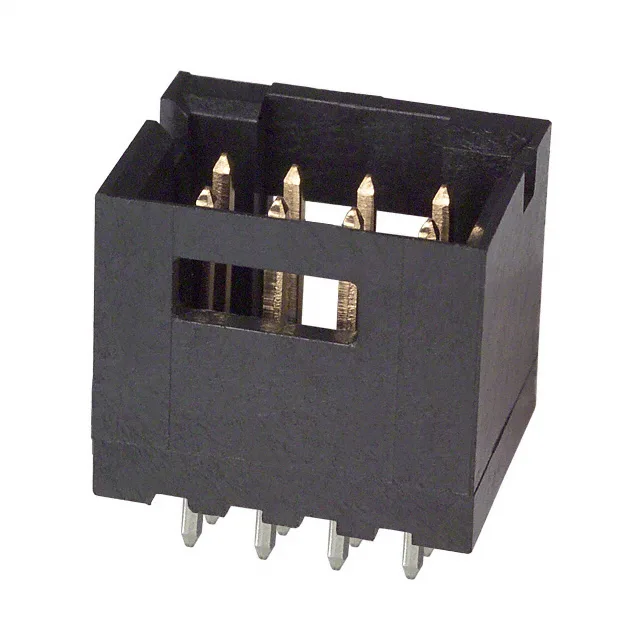

TE Connectivity AMPMODU Mod II, 103168-2, shrouded header, 8 positions, 0.100" (2.54mm) pitch, dual-row, through-hole solder, gold mating finish, 3 A, detent lock, black thermoplastic, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103168-2: It mates with standard AMPMODU Mod II receptacles for board-to-board stacking or cable-to-board harnesses. The detent lock on the shroud provides a positive retention feel during mating — no separate latch hardware needed, which saves assembly time in high-vibration panels.
If your BOM requires lead-free, you'll need to source a different plating option from the AMPMODU Mod II family.
No. The tin-lead post finish makes this part RoHS non-compliant.
