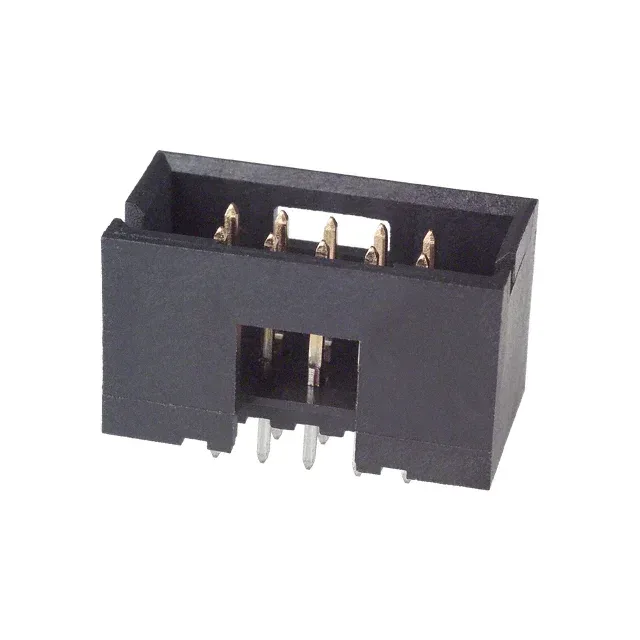

TE Connectivity AMPMODU Mod II header, 103169-3, 10 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder, gold mating contacts, detent lock, rated 3A, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103169-3: The operating range from -65°C to 105°C covers industrial cabinet, outdoor telecom, and automotive interior environments where thermal cycling is a concern.
The gold layer resists corrosion and maintains low contact resistance through repeated mating cycles — a common requirement for field-serviceable connections.
The 103169-3 is a 10-position, dual-row header with all positions loaded. The pinout follows standard AMPMODU Mod II row spacing of 0.100" (2.54mm).
No, the 103169-3 is RoHS non-compliant due to the tin-lead contact post finish.
