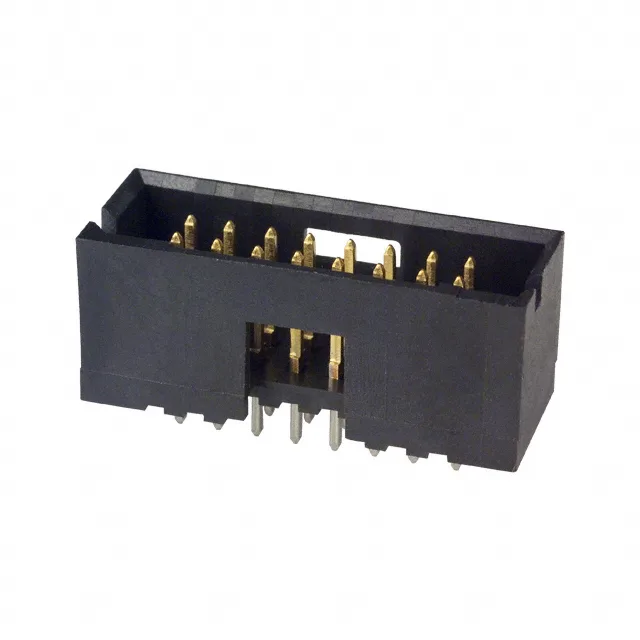

TE Connectivity AMP Connectors AMPMODU Mod II, 103169-6, Header, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Contact, Detent Lock, Tray
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103169-6: Rated 3 A per contact, this is a signal-level interconnect — not for power distribution. The gold mating finish (30.0µin) supports repeated mating cycles in corrosive or low-level signal environments, while the tin-lead post finish (100.0µin) is compatible with standard through-hole soldering.
The mating half is an AMPMODU Mod II receptacle housing with 16 positions, dual row, 0.100" pitch. The detent lock on the header engages with the corresponding latch on the receptacle.
No — it is listed as RoHS non-compliant because the contact post finish is tin-lead.
The 103169-5 is a sibling in the same base product number family. Check the position count and plating — if the specs match your BOM, it is a direct alternative. Confirm the contact finish and post length before substituting.
