TE Connectivity AMP Connectors 103233-3 — Pin Headers

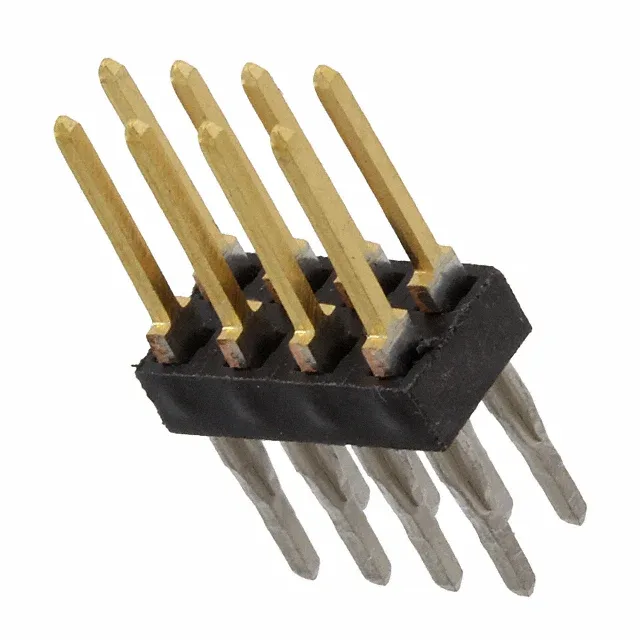

103233-3 TE Connectivity AMPMODU Mod II Header 8 Pos 2.54mm

MPN103233-3
Active

TE Connectivity AMPMODU Mod II header, 103233-3, 8 positions, 2 rows, 0.100" pitch, unshrouded, male pin, gold mating finish, press-fit and solder termination, through hole, black thermoplastic, UL94 V-0, 3 A, -55°C to 125°C.

$2.7200Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103233-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103233-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.250\" (6.35mm)
Overall contact length0.660\" (16.76mm)
Contact finish - matingGold
Contact length - mating0.320\" (8.13mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 103233-3 is an AMPMODU Mod II unshrouded header from TE Connectivity, specified for board-to-board or cable connections. Its 8 positions in two rows at 0.100" pitch match standard 2.54 mm grid layouts, common in control boards, I/O cards, and industrial equipment. Tin-lead on the post (100.0 µin) suits traditional soldering or press-fit assembly.

Fit and termination details

Through-hole mounting with a 0.250" post length. The press-fit option allows solderless assembly into plated-through holes, reducing thermal stress on the board. Overall contact length is 0.660", mating section 0.320". Fastening is push-pull — no latch, so vibration environments may need secondary retention.

Frequently asked questions

What is the pin configuration of 103233-3?

It is a 8-position, 2-row header with all positions loaded. Mating pitch is 0.100" (2.54 mm) and row spacing is also 0.100". Contact type is male pin, square shape.

Can 103233-3 mate with AMPMODU Mod II receptacle housings?

Yes, as an unshrouded header from the AMPMODU Mod II series, it mates with standard AMPMODU Mod II receptacles and IDC sockets designed for 0.100" pitch, 2-row configurations. Confirm the receptacle's position count and keying match your assembly.
