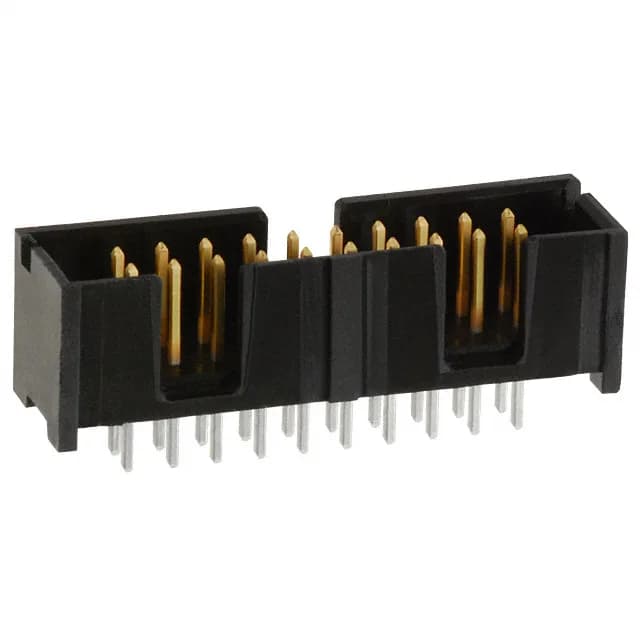

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 20 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Black, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 103308-5 is a 20-position, dual-row header from the AMP-Latch series, on 0.100" (2.54mm) pitch — a standard footprint for IDC ribbon cable and discrete wire harnesses.
If your BOM requires RoHS, look at the AMP-Latch series with tin or gold post finish.
No. The mating finish is Gold or Gold-Palladium.
Standard for AMP-Latch IDC systems.
