TE Connectivity AMP Connectors 103308-6 — Pin Headers

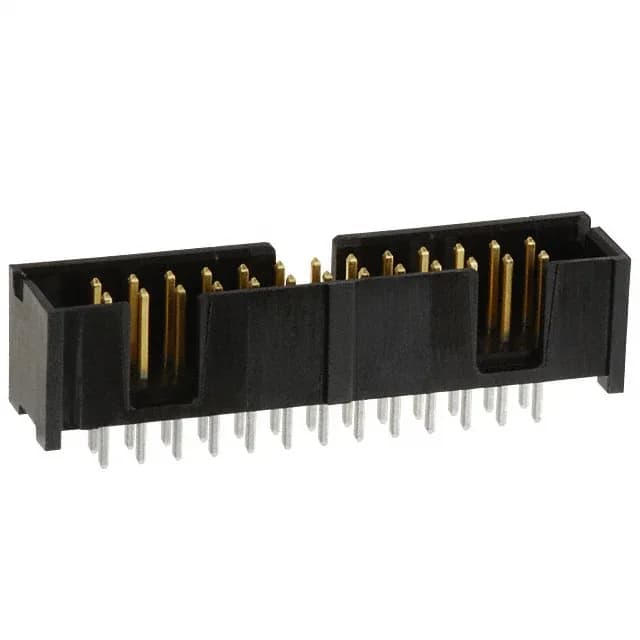

103308-6 TE Connectivity AMP-Latch Header, 26 Pos, 2.54 mm

MPN103308-6
Active

TE Connectivity AMP-Latch, 26-position shrouded header, 0.100" (2.54 mm) pitch, through-hole solder, male pin, 1 A per contact, UL94 V-0 black housing.

$3.1000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103308-6 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103308-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.388\" (9.86mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103308-6 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

26-position, 0.100" pitch — the AMP-Latch ribbon cable match

Gold mating surface, tin-lead tails — plating split for durability

The solder posts carry a 100.0 µin tin-lead finish, compatible with standard leaded solder processes.

The 1379030-3 is a 12-position, right-angle version with a friction lock and board lock, but uses tin-on-tin contacts and a UL94 HB housing. The 103308-6 offers 26 positions, vertical orientation, gold mating finish, and a V-0 housing — a more robust choice for higher cycle life and flame-rated enclosures.

Frequently asked questions

What is the closest functional alternative to the 103308-6?

The 1379030-3 is a 12-position, right-angle version with friction lock, but it uses tin mating contacts and a UL94 HB housing. For a 26-position vertical header with gold plating and V-0 rating, the 103308-6 is the direct choice.
