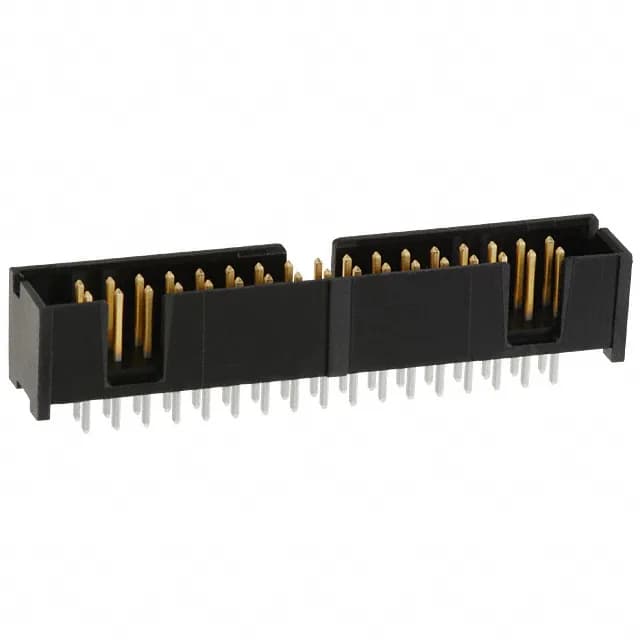

TE Connectivity AMP-Latch series, 103308-7, Board to Cable/Wire header, 34 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, gold or gold-palladium mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 103308-7 is a 34-position, dual-row, through-hole header from the AMP-Latch series, designed to mate with standard 34-conductor IDC ribbon cable receptacles.
The post finish is tin-lead (100.0 microinches), which is RoHS non-compliant per the current directive.
Mates with AMP-Latch IDC receptacles designed for 0.100" (2.54mm) pitch ribbon cable.
Yes. The shrouded 4-wall housing and keying slot ensure proper polarization with matching AMP-Latch receptacles.
