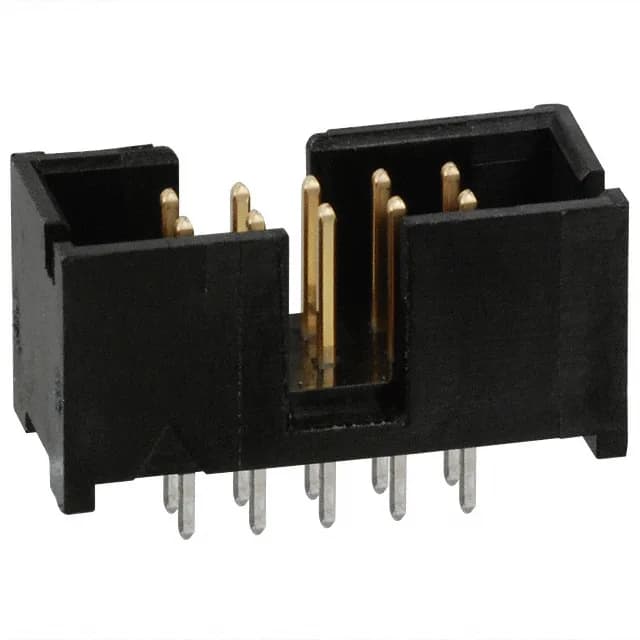

TE Connectivity AMP-Latch, Board to Cable/Wire header, 10 circuits, 0.100" (2.54mm) pitch, shrouded 4-wall, through hole solder termination, male pin square contacts, gold or gold-palladium mating finish, 1A per contact, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103309-1: The 4-wall shroud and keying slot guide the mating cable connector into alignment and prevent mis-mating.
Insulation height of 0.388" (9.86mm) leaves clearance under the shroud for cable strain relief features on the mating half.
No, it is RoHS non-compliant due to the tin-lead post finish. Verify your application's exemption status before ordering.
This header mates with AMP-Latch IDC socket connectors on 0.100" pitch ribbon cable. The 4-wall shroud and keying slot align with the mating receptacle.
