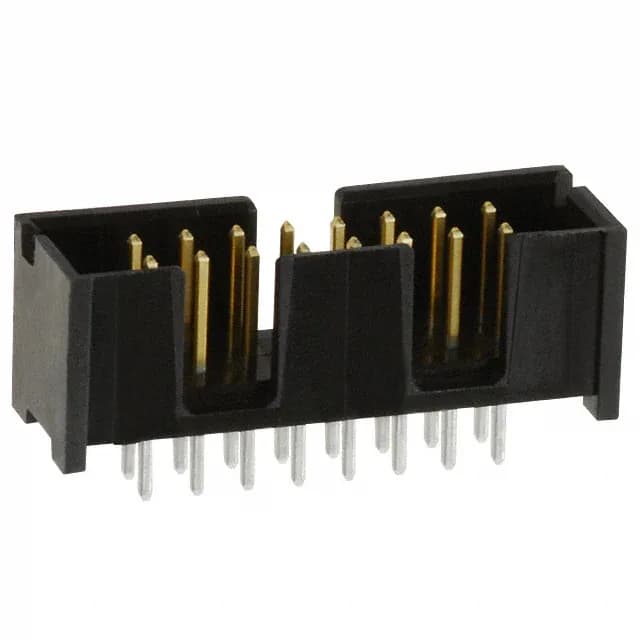

TE Connectivity AMP-Latch series, 103309-3, board-to-cable/wire header, 16 positions, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder termination, shrouded 4-wall, male pin contacts with 30 µinch gold mating finish, 1 A per contact, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103309-3: In a low-vibration environment like a test fixture or a stationary control panel, that is fine; for a moving cable assembly, add a strain-relief clamp or a secondary lock at the harness end.
RoHS non-compliant. The tin-lead post finish means this header does not meet the European RoHS directive. If your assembly requires full RoHS exemption or a lead-free alternative, flag this at the BOM review stage.
The 4-wall shroud aligns the pair; the push-pull retention holds them mated without a latch.
