TE Connectivity AMP Connectors 103309-6 — Pin Headers

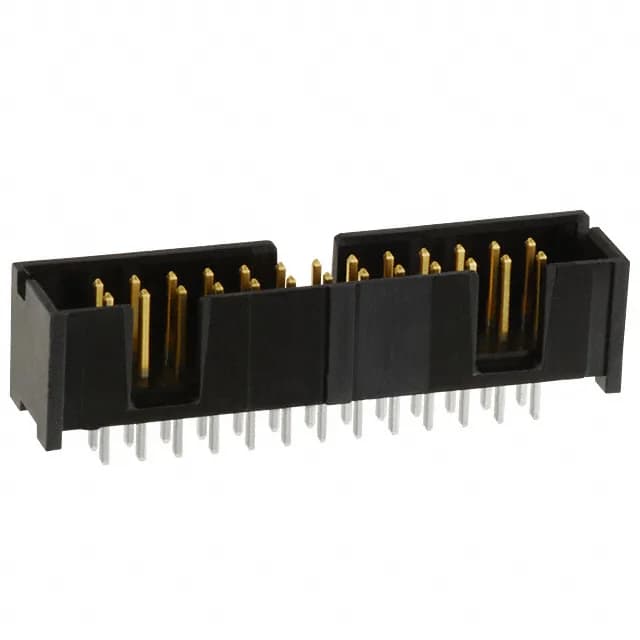

103309-6 TE AMP-Latch Header 26 Pos 2.54mm Through Hole

MPN103309-6
Active

TE Connectivity AMP-Latch, Board to Cable/Wire Header, 26 Positions, 2.54 mm Pitch, Through Hole, Shrouded - 4 Wall, Gold or Gold-Palladium Mating Finish, UL94 V-0

$3.8300Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103309-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.388\" (9.86mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103309-6 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

RoHS Status and Compliance Consideration

The 103309-6 is RoHS non-compliant due to the tin-lead contact finish on the solder posts, which means it cannot be used in assemblies requiring RoHS conformity. For new designs requiring lead-free compliance, a RoHS-compliant alternative from the same series should be evaluated.

The header mates with AMP-Latch IDC socket connectors that accept 26-conductor ribbon cable, using the standard push-pull fastening mechanism. The keying slot in the shroud prevents mismating with non-keyed receptacles, ensuring correct orientation during assembly.

Frequently asked questions

Is the 103309-6 RoHS compliant?

No, the 103309-6 is RoHS non-compliant because the contact finish on the solder posts is tin-lead. For RoHS-mandated assemblies, a lead-free alternative from the AMP-Latch series should be selected.

What is the closest pin-compatible alternative to the 103309-6 in the AMP-Latch series?

A pin-compatible alternative would be a 26-position, 2.54 mm pitch, shrouded header with gold mating finish and RoHS-compliant plating. Check the TE AMP-Latch series for parts with the same base number 103309 and a different suffix indicating lead-free post finish.
