34-Position AMP-Latch Header for Board-to-Cable/Wire

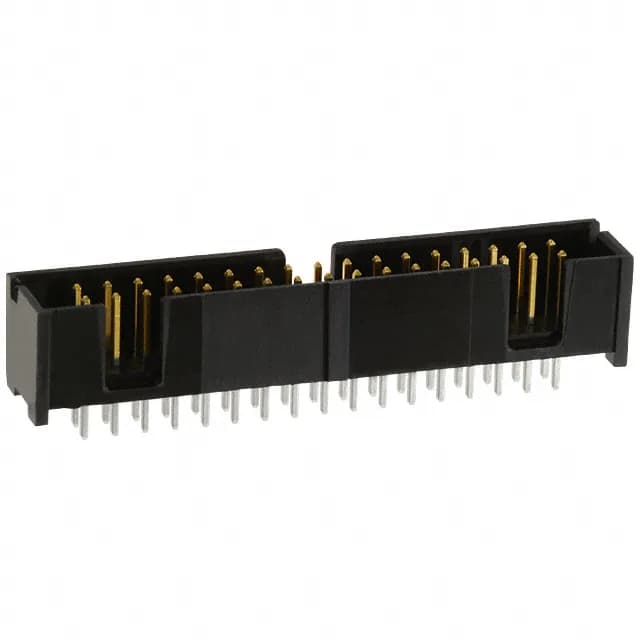

The 103309-7: This is a 34-position, 2-row, shrouded header from the TE AMP-Latch series, designed for board-to-cable/wire connections. It uses a 0.100" (2.54mm) pitch on both rows and contacts, with a 0.100" row spacing — the standard footprint for IDC ribbon cable receptacles. The mating finish is gold or gold-palladium at 30.0µin (0.76µm), which handles moderate mating cycles without the cost of thicker plating. The post finish is tin-lead at 100.0µin (2.54µm), a legacy solder finish. Rated at 1A per contact, with an operating temperature range of -65°C to 105°C.
Through-hole termination with a 0.120" (3.05mm) post length. The 0.240" (6.10mm) mating pin length provides good wipe in the receptacle.
