TE Connectivity AMP Connectors 103310-1 — Pin Headers

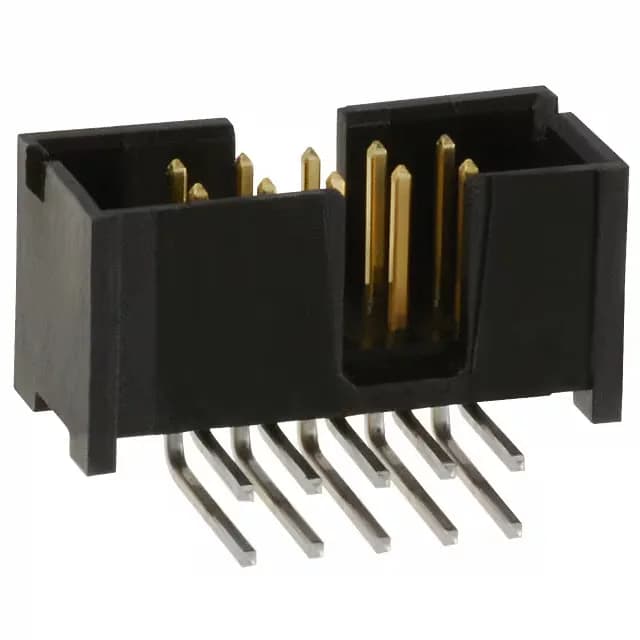

103310-1 TE Connectivity AMP-Latch Header, 10 Pos, 2.54 mm

MPN103310-1
Active

TE Connectivity AMP-Latch, Board to Cable/Wire Header, 10 Positions, 2 Rows, 0.100" (2.54 mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Gold or Gold-Palladium Mating Finish, 1 A per Contact, UL94 V-0, Black, Bulk

$2.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103310-1 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

103310-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103310-1 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-Angle Board-to-Cable Header for AMP-Latch Systems

The 103310-1: A keying slot prevents incorrect insertion in multi-connector panels.

Active Production, RoHS Non-Compliant — Sourcing Notes

This part is RoHS non-compliant due to the tin-lead post finish. For lead-free builds, verify the solder process compatibility or evaluate alternative plating options in the AMP-Latch series.

How the 103310-1 Compares to Nearby AMP-Latch Headers

Compared to the 1379030-3, which is a 12-position, 2-row header with a friction lock and board lock, the 103310-1 offers 10 positions with a push-pull fastening and no board lock — a simpler, lower-retention option for applications where the cable is not subject to high vibration.

Frequently asked questions

Is 103310-1 RoHS compliant?

No, the 103310-1 is RoHS non-compliant because the contact post finish is tin-lead. The mating finish is gold or gold-palladium, but the post finish drives the non-compliance.

What is the mating connector for 103310-1?

The keying slot ensures correct orientation.

What is the replacement for 103310-1?

No official replacement or successor is recorded from TE Connectivity. The 1379030-3 is a 12-position alternative with a friction lock and board lock, but it has a different position count and fastening type.
