TE Connectivity AMP Connectors 103310-3 — Pin Headers

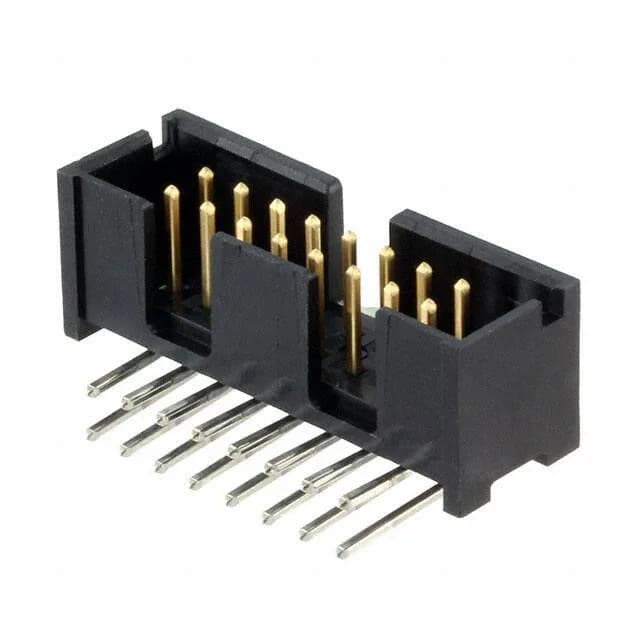

103310-3 TE Connectivity AMP-Latch Header, 16 Pos

MPN103310-3
Active

TE Connectivity AMP-Latch 103310-3, Board to Cable/Wire header, 16 circuits, 0.100" (2.54mm) pitch, 1A per contact, gold or gold-palladium mating finish, through-hole right-angle, shrouded 4-wall, push-pull fastening, UL94 V-0.

$2.9500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103310-3 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103310-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103310-3 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

16-Position Right-Angle Header for Board-to-Cable Runs

Gold Mating Finish and Solder Termination

Mating contacts are finished with 15.0 µinch of gold or gold-palladium over the brass base material. The solder posts are tin-lead plated at 100.0 µinch, which is a legacy finish — not compatible with RoHS lead-free wave or reflow processes unless an exemption applies.

Active Production, RoHS Non-Compliant — Sourcing Notes

Sourced through independent distribution channels per RFQ.

The closest peer in the ledger is 1379030-3, also a right-angle shrouded header but with 12 positions instead of 16, a friction lock instead of push-pull, and a board lock feature for extra PCB retention.

Frequently asked questions

Where can I buy 103310-3 and get a price?

The 103310-3 is sourced through independent distribution against an RFQ. No stock-holding claim is made on this listing.

What is the mating connector for 103310-3?

The 103310-3 is a shrouded male header designed to mate with AMP-Latch female socket connectors (IDC or crimp type) that match the 0.100" pitch and 16-position, dual-row layout. Confirm the mating half's keying slot alignment — the header includes a keying slot feature.
