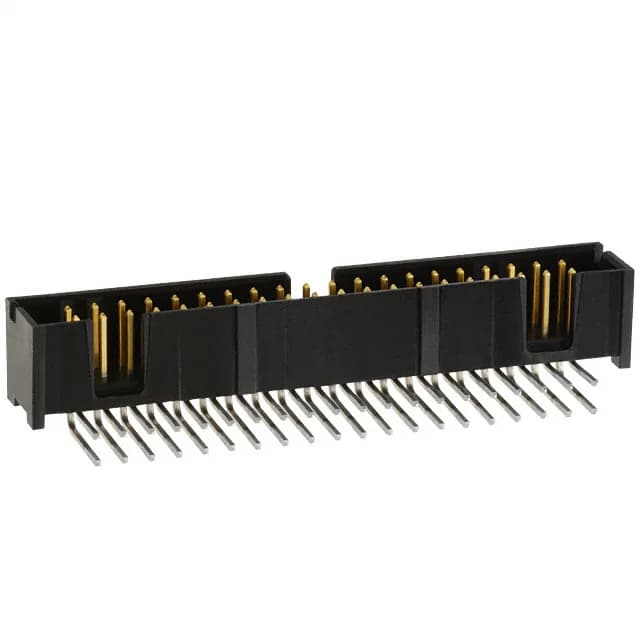

TE Connectivity AMP-Latch header, order code 103310-8, 40 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, gold or gold-palladium mating contacts, through-hole right-angle, solder termination.
TE AMP-Latch 103310-8 Header, 40-Pos, 0.100" Pitch
MPN103310-8
Active
TE Connectivity AMP-Latch header, order code 103310-8, 40 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, gold or gold-palladium mating contacts, through-hole right-angle, solder termination.
$4.1339Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is 103310-8's listed style?
The 103310-8 is listed as a Board to Cable/Wire header style.
What compliance documentation does this brand provide for 103310-8?
RoHS and REACH documentation is available from the manufacturer upon request.
