TE Connectivity AMP Connectors 103311-1 — Pin Headers

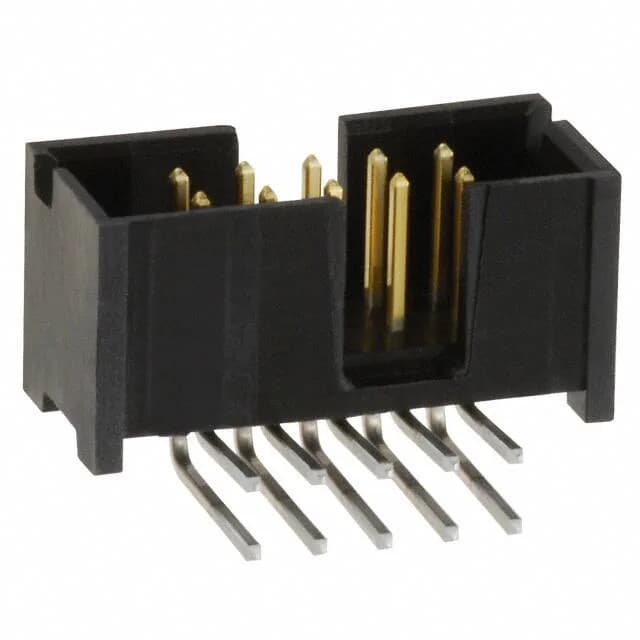

103311-1 TE AMP-Latch Header – 10 Pos, 2.54mm Pitch, R/A

MPN103311-1
Active

TE Connectivity AMP-Latch header, 103311-1, 10 positions, 2.54 mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated male pins, 1 A per contact, UL94 V-0.

$2.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103311-1 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

103311-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103311-1 additional specifications
ParameterValue
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Pitch, Orientation, and Footprint Fit

The solder tails are 0.135 inches (3.43 mm) long — confirm the PCB hole depth for through-hole soldering. Compared to the single-row 1394090-1 (6 positions, 0.112-inch pitch, tin-plated), the 103311-1 offers a higher circuit count and gold-plated mating contacts for better corrosion resistance and cycle life.

Note that this part is RoHS non-compliant due to tin-lead plating on the solder tails. If RoHS compliance is required, consider the lead-free alternatives in the AMP-Latch series with tin or gold post plating.

Frequently asked questions

Is 103311-1 RoHS compliant?

No. The 103311-1 is RoHS non-compliant because the solder tails have tin-lead plating. If you need a RoHS-compliant AMP-Latch header, look for variants with tin or gold post finish.

Does 103311-1 mate with standard 2.54mm IDC connectors?

Yes. It mates directly with 10-position IDC sockets designed for 2.54 mm pitch ribbon cable.

What is the closest functional second-source for 103311-1?

The 1394090-1 is a single-row, 6-position header with a different pitch (0.112-inch) and tin plating — it is not a form-fit-function cross. For a direct replacement, stay within the AMP-Latch series at the same pitch, row count, and right-angle orientation.
