0.100" Pitch, 16-Position Right-Angle Header for AMP-Latch
The 103311-3: It mates with the matching AMP-Latch IDC socket or receptacle for board-to-cable/wire connections.

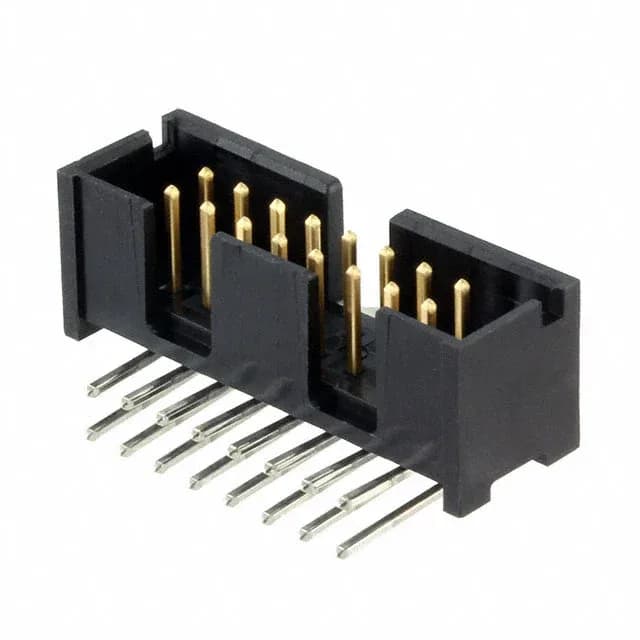

103311-3 TE Connectivity AMP-Latch Right Angle Header 16
MPN103311-3
Active
TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Shrouded - 4 Wall, Push-Pull Fastening, 1A per Contact, -65°C ~ 105°C, UL94 V-0, Black
$3.0800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 103311-3 RoHS compliant?
No, the 103311-3 is RoHS non-compliant. The contact finish on the post is tin-lead (100.0µin).
What is the pinout of 103311-3?
The 103311-3 is a 16-position, dual-row header with all positions loaded. The pinout follows the standard AMP-Latch dual-row footprint — row spacing is 0.100" (2.54mm).
