TE Connectivity AMP Connectors 103311-5 — Pin Headers

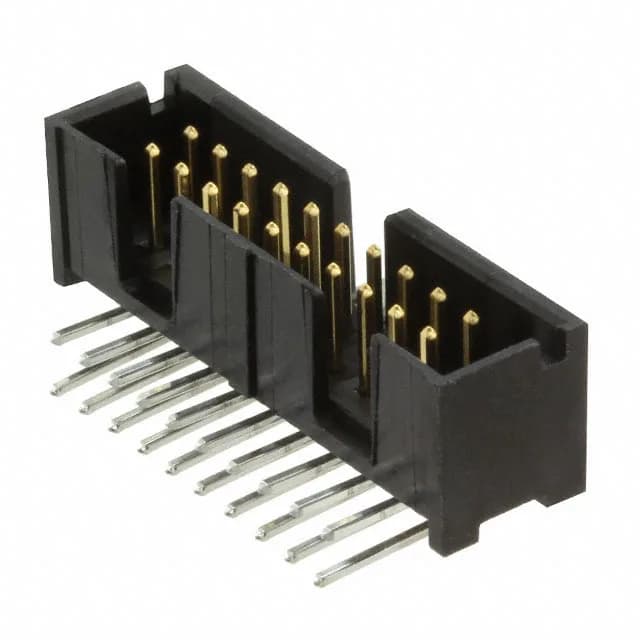

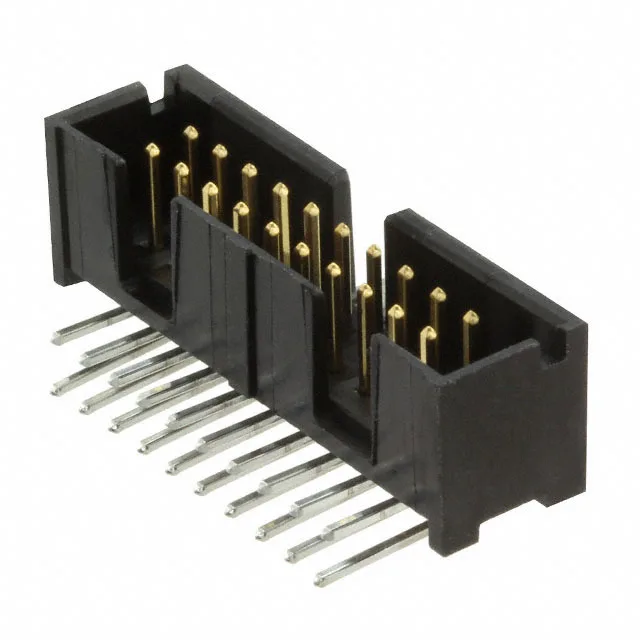

103311-5 TE AMP-Latch Header 20 Pos Right Angle 2.54mm

MPN103311-5
Active

TE Connectivity AMP-Latch 103311-5, Board to Cable/Wire header, 20 positions, dual row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded - 4 wall, push-pull fastening, keying slot, black UL94 V-0 housing, 1A per contact, -65°C ~ 105°C.

$4.0900Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103311-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

103311-5 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle header for ribbon-cable I/O

Position count and circuit density

At 20 positions fully loaded across two rows, this header matches the common 20-conductor ribbon cable. Another close alternative, 103309-6, offers 26 positions but uses a straight (vertical) through-hole mounting instead of right-angle — a different board orientation for applications needing the cable to exit perpendicular to the PCB.

No stock-holding claim is made here; availability varies by distributor and order volume.

Frequently asked questions

Is 103311-5 RoHS compliant?

No — 103311-5 is RoHS non-compliant because the contact post finish is tin-lead. If your assembly requires RoHS compliance, look at the same series with a tin post finish, or confirm with your compliance team whether the tin-lead is acceptable under an exemption.

What is the pitch of 103311-5?

The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This is the standard 2.54mm grid for IDC ribbon-cable connectors.
