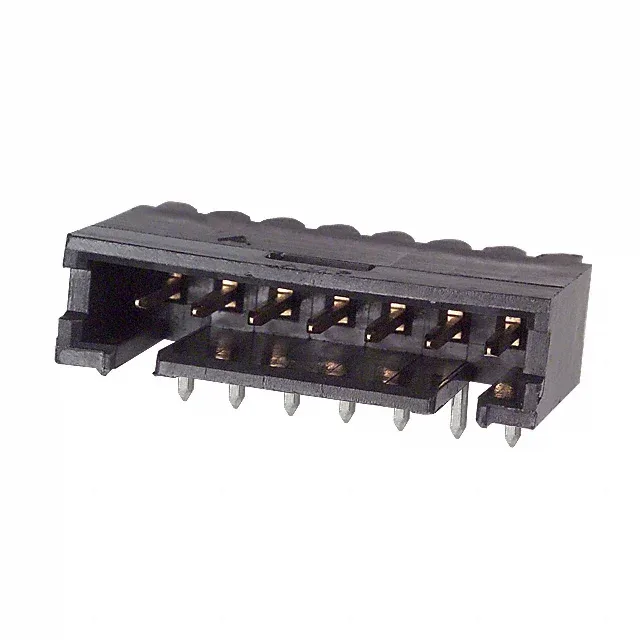

TE Connectivity AMPMODU Mod II header, order code 103361-5, 7 positions, single row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103361-5 is the 7-position member of TE Connectivity's AMPMODU Mod II shrouded header line, a single-row through-hole right-angle design.
Stock both halves or neither — the mating receptacle is also discontinued.
The four-wall shroud (0.214" / 5.44mm insulation height) and push-pull latch protect the 0.240" (6.10mm) mating pin length.
No pin-compatible alternative is listed in the available records.
