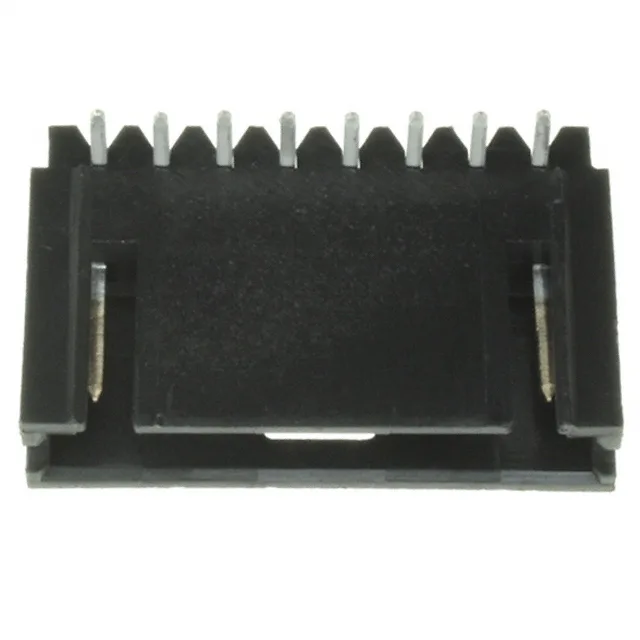

TE Connectivity AMPMODU Mod II, 103361-6, 8-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole right-angle, gold mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
RoHS non-compliant (tin-lead post finish). If your BOM requires RoHS exemption documentation, confirm the acceptance criteria with your compliance team before committing the line.
No — the post finish is tin-lead, making this part RoHS non-compliant. Verify your project's exemption policy before ordering.
It mates with AMPMODU Mod II female socket housings or IDC receptacles on the same 0.100" pitch.
