TE Connectivity AMP Connectors 103634-4 — Pin Headers

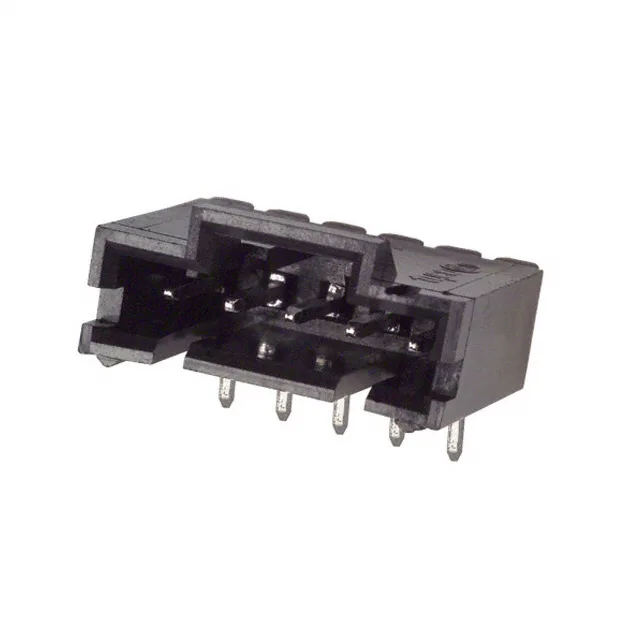

103634-4 TE Connectivity AMPMODU MTE Header 5 Pos 2.54mm

MPN103634-4
Active

TE Connectivity AMPMODU MTE, Header, 5 Positions, 2.54mm Pitch, Through Hole Right Angle, Shrouded - 4 Wall, Latch Holder, 3A, -65°C ~ 105°C, UL94 V-0

$1.3600Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103634-4 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103634-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin-Lead
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Right-Angle Shrouded Header for Signal Interconnects

Key Specs for Board Layout and Assembly

The 0.200" (5.08mm) insulation height and 0.130" (3.30mm) post length define the board standoff and solder tail length. A keying slot is included as a feature, allowing polarization to prevent mismating in multi-connector assemblies.

Comparison with Peer 1394090-1

The 103634-4 uses a 2.54mm pitch and tin-lead plating (100µin) versus the 1394090-1's tin plating (39.4µin). For a 5-position BOM, the 103634-4 is the direct fit.

Frequently asked questions

Is 103634-4 RoHS compliant?

The contact finish on both the mating and post surfaces is tin-lead, which contains lead and is not RoHS-compliant. Verify your application's exemption requirements before specifying this part.
