Right-Angle 6-Position Header for Board-Edge Routing
The 103634-5: Rated 3 A per contact, the current ceiling is typical for signal-level interconnect — suitable for control lines, sensor inputs, and low-power data paths.

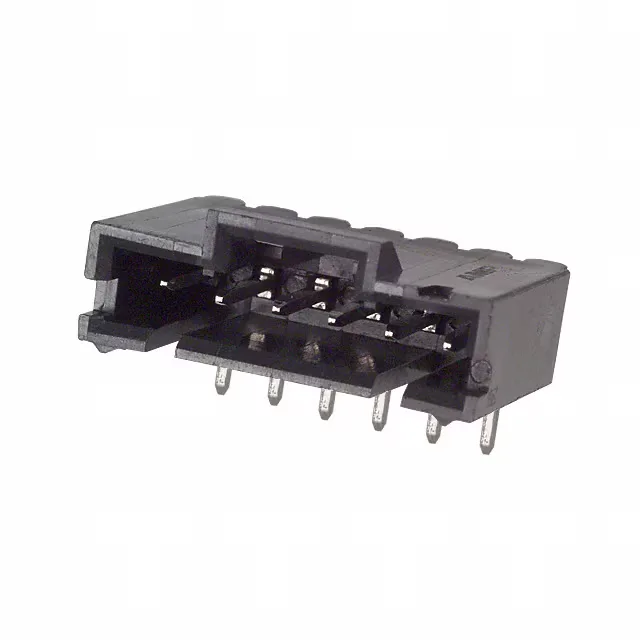

103634-5 TE Connectivity AMPMODU MTE Right-Angle Header 6
MPN103634-5
Active
TE Connectivity AMPMODU MTE header, 103634-5, 6-position single-row, 2.54mm pitch, right-angle through-hole, shrouded 4-wall, latch holder, tin-lead mating finish, 3A, -65°C to 105°C, UL94 V-0.
$2.4400Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Is 103634-5 RoHS compliant?
For RoHS-regulated markets, confirm your exemption or consider a lead-free alternative in the AMPMODU MTE series.
