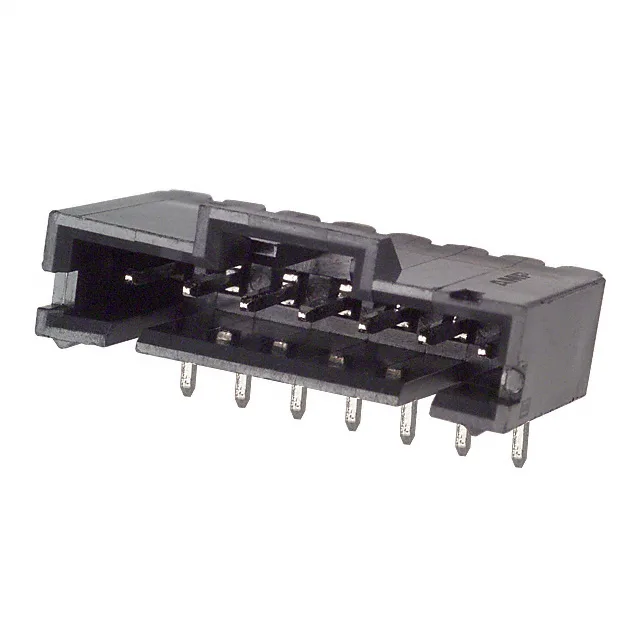

TE Connectivity AMPMODU MTE header, order code 103634-6, 7 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead mating contacts, through-hole right-angle, solder termination, shrouded 4-wall with latch holder.
TE 103634-6 AMPMODU MTE Header, 7-Pos, 2.54mm
MPN103634-6
Active
TE Connectivity AMPMODU MTE header, order code 103634-6, 7 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead mating contacts, through-hole right-angle, solder termination, shrouded 4-wall with latch holder.
$1.4669Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the 103634-6's style and series?
The 103634-6 is listed as a Board to Board or Cable style header in the AMPMODU MTE series.
