TE Connectivity AMP Connectors 103635-4 — Pin Headers

103635-4 TE Connectivity AMPMODU MTE Header 5 Pos 2.54mm

MPN103635-4
Active

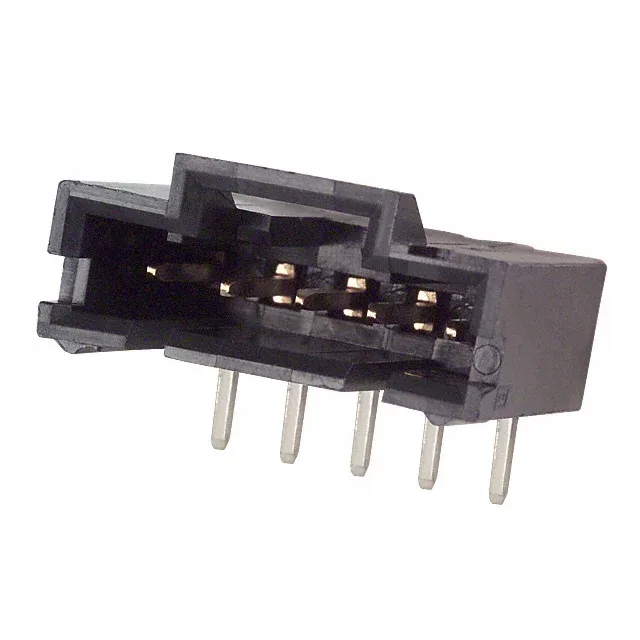

TE Connectivity AMPMODU MTE, 5-position single-row right-angle header, 0.100" (2.54 mm) pitch, shrouded 4-wall, gold mating finish, 3 A, through-hole solder termination, UL94 V-0.

$1.6500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103635-4 datasheet (PDF)
RoHSNot applicable
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103635-4 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103635-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-Angle 5-Position Header on 2.54 mm Grid

The 103635-4 is a 5-position single-row right-angle header from TE's AMPMODU MTE series. It mates with AMPMODU MTE receptacle housings for wire-to-board or cable-to-board connections.

3 A Signal-Level Current with Gold Contact Interface

The contact material is brass with a tin-lead post finish (100 µinch). The gold-on-mating, tin-on-tail split is standard for connectors that need a reliable contact interface on the wire side and a solderable tail on the board side.

The base product number is 103635, which covers the family of AMPMODU MTE headers.

Automotive, Medical, and Telecom Rated

Frequently asked questions

Is the 103635-4 RoHS compliant?

The contact post finish is tin-lead, which is not RoHS compliant under the current exemption structure. Confirm your application's RoHS exemption eligibility before ordering.

What is the pinout and pitch of the 103635-4?

All positions are loaded.
