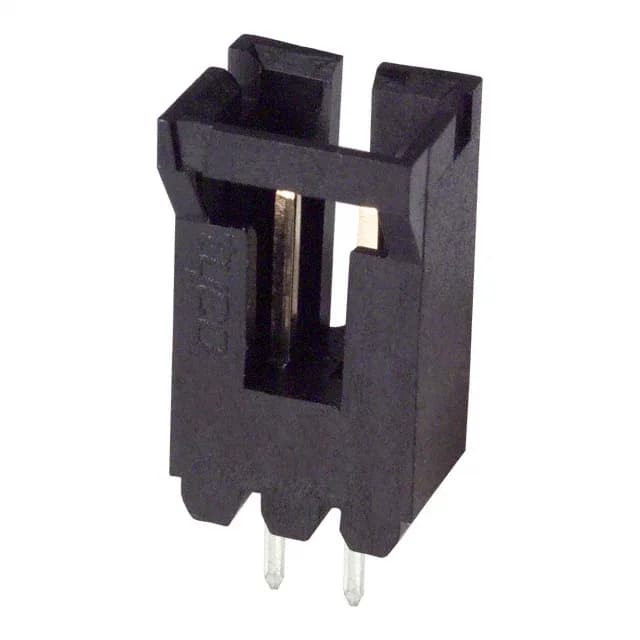

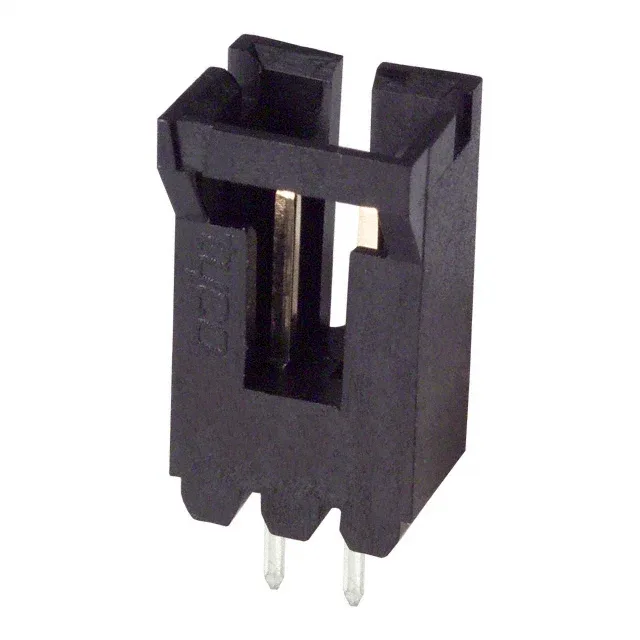

TE Connectivity AMPMODU MTE header, 2-position single-row, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated square pins, shrouded 4-wall housing with latch holder, black thermoplastic, tube package.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Key differences: 1394090-1 has 6 positions (vs 2), a 0.112" (2.85mm) pitch (vs 0.100"), right-angle through-hole mounting (vs vertical), and tin-plated mating contacts (vs gold). The gold plating on 103638-1 gives it a mating-cycle advantage for applications requiring frequent connect/disconnect.
The 103638-1 is sourced to order against your BOM quantity through independent distribution. Current pricing and availability are confirmed at the time of RFQ — submit a request for a quote with your target quantity.
This header mates with AMPMODU MTE receptacle housings and crimp socket terminals from the same series.
Yes, automotive is listed among the approved applications for this part, alongside general purpose, medical, and telecommunications.
