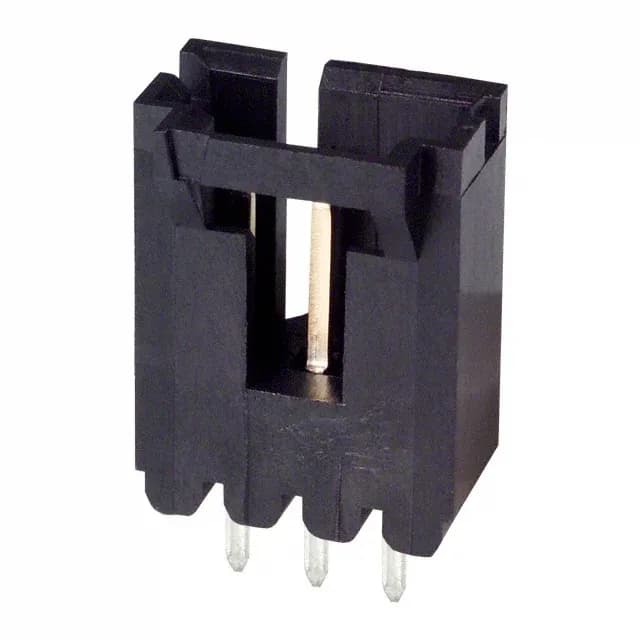

3-position single-row header for signal routing
Pitch, pinout, and mating half fit
The 0.100" pitch is standard for 2.54mm grid layouts, so the footprint matches common prototyping boards and existing PCB designs. All 3 positions are loaded, and the header mates with AMPMODU MTE receptacles that use the same latch holder fastening system for a positive lock. Compared to the 1394090-1 peer, which is a 6-position right-angle header with tin mating finish on a 0.112" pitch, the 103638-2 offers a smaller position count and a vertical orientation with gold contacts for signal integrity.
It is RoHS non-compliant due to tin-lead post plating, so verify your assembly's exemption or lead-free requirements before committing.
