TE Connectivity AMP Connectors 103638-3 — Pin Headers

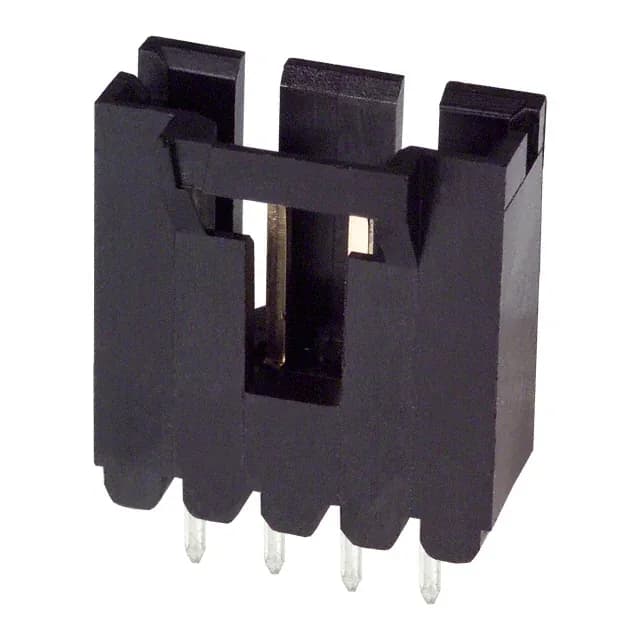

103638-3 TE Connectivity AMPMODU MTE Header, 4 Pos, 2.54 mm

MPN103638-3
Active

TE Connectivity AMPMODU MTE header, 103638-3, 4 positions, 0.100" (2.54 mm) pitch, single row, shrouded – 4 wall, through hole, solder termination, gold mating finish 15.0 µin, latch holder fastening, black thermoplastic housing.

$0.7400Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103638-3 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot

All specifications

103638-3 additional specifications
ParameterValue
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 103638-3: The keying slot prevents mis-mating, and the 4-wall shrouding protects the pins during handling and mating. This connector is intended for board-to-board or cable applications in automotive, general purpose, medical, and telecommunications equipment.

This gold plating provides corrosion resistance and maintains low contact resistance over repeated mating cycles, making the header suitable for applications where the connector may be disconnected and reconnected in the field. This is a traditional solderable finish, but note the part is RoHS non-compliant due to the lead content.

Frequently asked questions

Is 103638-3 RoHS compliant?

No. The 103638-3 is RoHS non-compliant due to tin-lead plating on the solder tails. If your BOM requires RoHS compliance, consider a lead-free variant from the AMPMODU MTE series.

What is the mating connector for 103638-3?

This header mates with AMPMODU MTE receptacle housings that accept crimp terminals. The latch holder on the header engages with the matching latch on the receptacle. Confirm the circuit count and pitch match your chosen housing.
