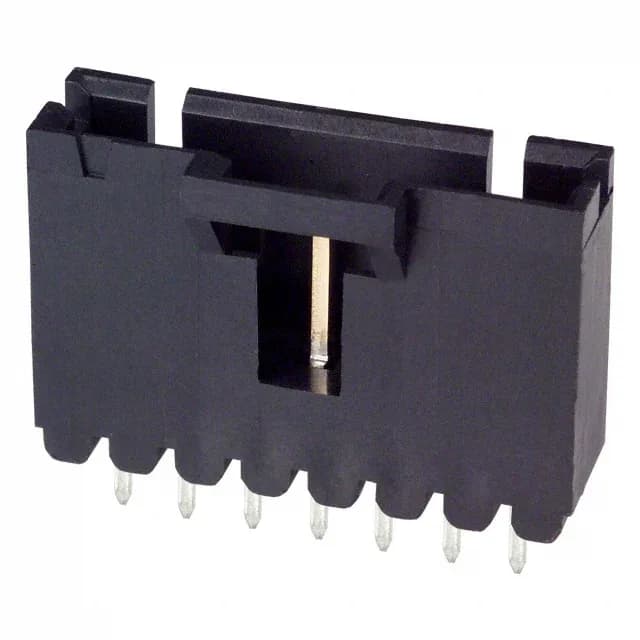

TE Connectivity AMPMODU MTE header, 103638-6, 7 positions, single row, 0.100" (2.54mm) pitch, shrouded 4-wall, through hole, gold mating finish, latch holder, black thermoplastic, tube pack.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The gold mating finish (15.0µin) handles repeated connect-disconnect cycles without fretting.
The 2.54mm pitch is a standard grid — fits existing 0.100" board layouts. 7 positions loaded all, single row, through hole solder tails 0.130" long. The square male pins (0.230" mating length) engage with standard AMPMODU receptacles.
