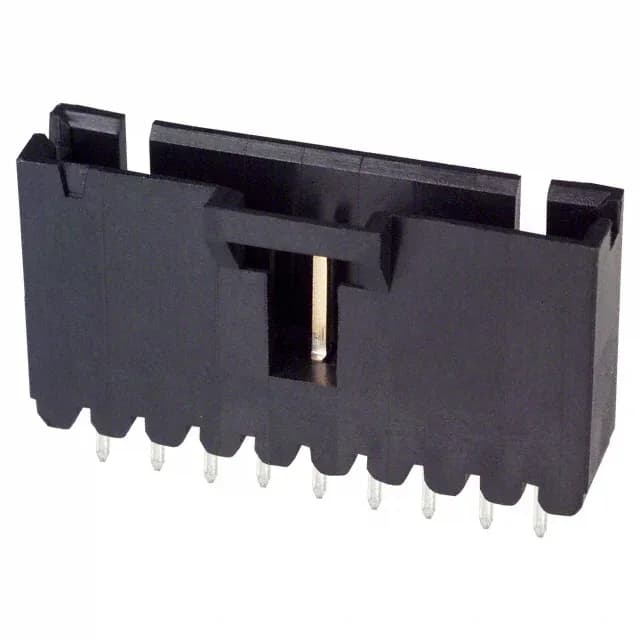

TE Connectivity AMP Connectors AMPMODU MTE header, order code 103638-8, 9 positions, single row, 0.100" (2.54 mm) pitch, through hole, solder termination, gold-plated mating contacts, shrouded - 4 wall.
103638-8 TE AMPMODU MTE Header, 9 Pos, 2.54mm
MPN103638-8
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 103638-8, 9 positions, single row, 0.100" (2.54 mm) pitch, through hole, solder termination, gold-plated mating contacts, shrouded - 4 wall.
$0.7900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 103638-8 in this Pin Headers, Sockets & Housings family?
The 103638-8 is a single-row 9-position header in the AMPMODU MTE series.
