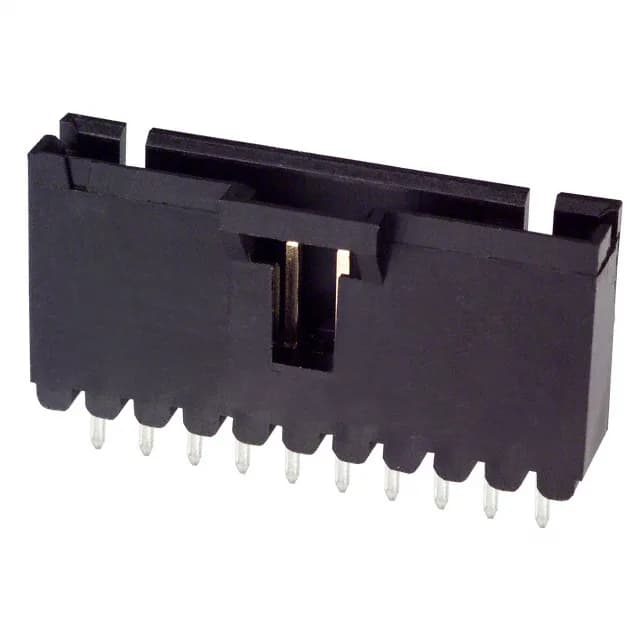

TE Connectivity AMPMODU MTE, Header, 10 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Solder Termination, Gold Mating Finish, Latch Holder, Tube
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
At 10 positions and 0.100" pitch, this header is a direct fit for AMPMODU MTE receptacles and many standard 0.100" centerline crimp housings. Compared to the 6-position 1394090-1 (same series, right-angle variant, tin mating finish), this 103638-9 offers more circuits and the gold mating surface for higher reliability in corrosive or high-cycle environments.
No, the 103638-9 is RoHS non-compliant because the contact post finish is tin-lead (100.0µin). Verify your application's RoHS exemption before committing the BOM line.
The mating pitch is 0.100" (2.54mm), which is the standard spacing for AMPMODU MTE and many industry-standard 0.100" centerline connectors.
