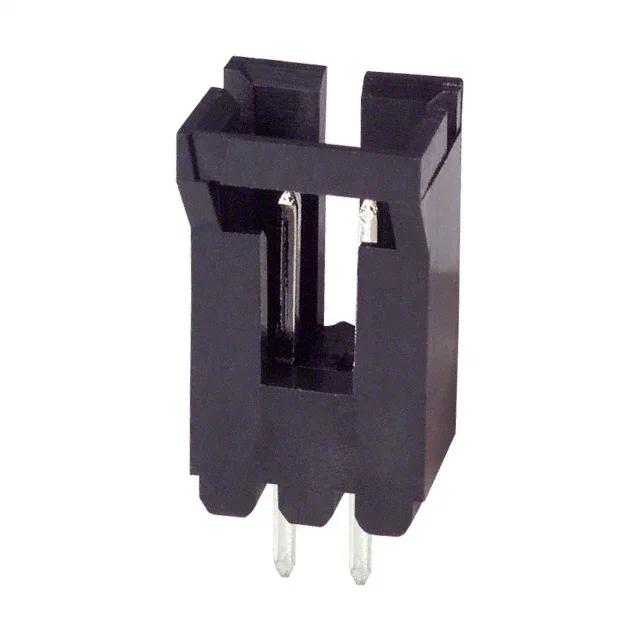

TE Connectivity AMP Connectors AMPMODU MTE, Header, 2 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Tin-Lead Plating, 3A, -65°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 103639-1: The full 4-wall shroud and keying slot prevent mis-mating and protect the male square pins during handling and assembly.
This header is RoHS non-compliant due to its tin-lead contact finish. For lead-free builds, a different plating option within the AMPMODU MTE family is required. Production status is Active.
The pitch is 0.100" (2.54 mm), single row, 2 positions loaded.
Yes, it is a shrouded - 4 wall header with a keying slot to prevent mis-mating.
The peer part 1394090-1 is a 6-position, right-angle, tin-plated header from the same AMPMODU MTE family, but it differs in position count, orientation, and plating. No direct drop-in replacement is listed; confirm the BOM position count and mating half before substituting.
