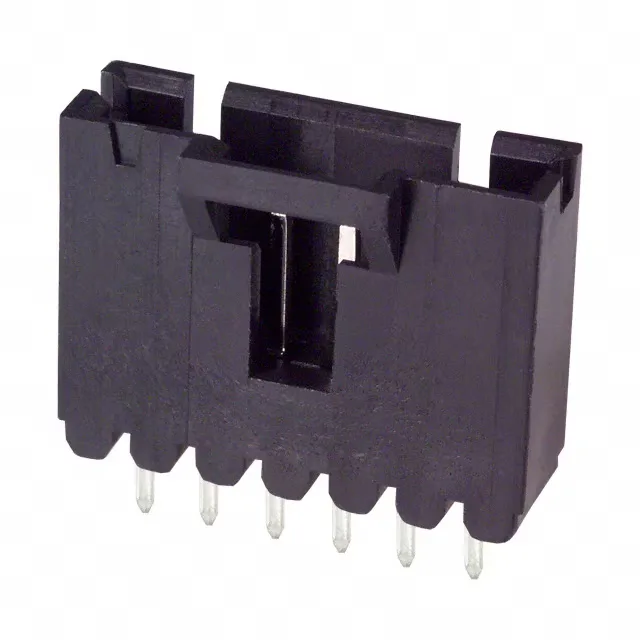

TE Connectivity AMP Connectors AMPMODU MTE header, 103639-5, 6 positions, single row, 0.100" (2.54 mm) pitch, shrouded 4-wall, through-hole solder, tin-lead plated contacts, rated 3 A, UL94 V-0, black thermoplastic, active.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 103639-5: Single-row layout keeps the board-edge width to 0.100" times 6 positions, plus the shroud overhang — a compact signal interconnect for space-constrained PCBs.
A keying slot prevents incorrect mating orientation — useful when multiple headers of the same pitch sit side by side on a board.
If RoHS exemption applies or legacy stock is acceptable, this part is a direct fit for existing designs.
This is the standard AMPMODU MTE pitch.
Yes, it is a shrouded 4-wall header with a latch holder and keying slot. The shroud protects the pins and guides the mating receptacle.
Automotive, general purpose, medical, and telecommunications equipment. The UL94 V-0 rating and -65°C to 105°C temperature range suit industrial and automotive interior environments.
